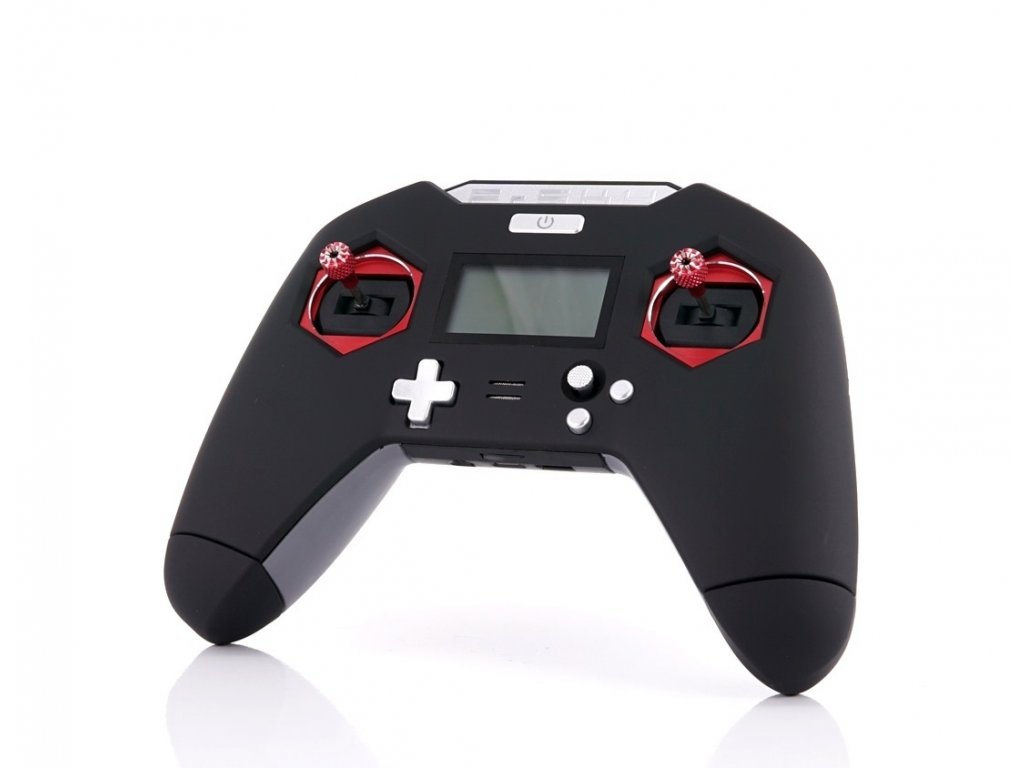

FrSky X-Lite S

Product detailed description

The top of the range radio in the ergonomics of a game controller and with the option to add the R9M Lite module with 868 MHz frequency is an interesting alternative to conventional radios. The radio is equipped with gimbals with Hall sensors, four switches and two sliders, vibration and sound response. Again, OpenTX promises unrivalled setup options. X-Lite S is already equipped with the new ACCESS protocol as well as D16.

Features:

• Ergonomic design
• user-adjustable radio mode
• 16 real broadcast channels (even more in combination with other modules and receivers)
• gimbals with Hall sensors
• change mode and settings without opening the radio
• high-speed communication with internal and external modules
• internal 450 k, external 420 k
• super low latency (overall < 20 ms, lowest 12 ms)
• compatible with the new Lite module type
• OpenTX
• vibration response, voice response via integrated speaker or headphones
• internal antenna and external antenna connector
• 128 × 64 backlit display
• S.Port, MicroUSB, headphone jack, SD card slot
• easily accessible battery compartment type 18500
• Teacher/student mode via 3.5mm jack or wirelessly
• Battery charging in the radio via USB port
• integrated six-axis gyro

Specifications:

• Model name: Taranis X-Lite S
• Number of channels: 24/16
• Transmission standard: EU LBT according to ETSI EN 300 328 V1.9.1
• operating voltage: 6-8.4 V (2 × 18 500 batteries)
• Consumption: 190 mA @ 7.4 V
• working temperature: - 20-60℃
• LCD screen: 128 × 64 dots
• Memory for models: 60 (expandable to SD card)
• Teacher/student port: yes
• wireless teacher/student: yes
• Receiver compatibility with ACCESS protocol and D16

Radio mode change.

The radio is designed with user adjustable modes. There are 4 holes on the back of the radio for screwing in the included screws. Take extra care when selecting the screws and their placement. There are metal nuts embedded in the plastic molding so screwing should be easy and gentle. If it is not, it may be a sign of an unexpected obstruction and may damage the radio.

Screwthe long screw all the way in to stop the centering arm, and the short screw in as far as the braking force suits you.

Package contents:

• X-Lite S radio - without battery
• EVA case
• 8GB SD card
