ESC SucceX 50A 2-6S 4-in-1 ESC Dshot1200

SucceX 50A 2-6S 4-in-1 ESC Dshot1200

Features:

- 8 layers double-sided PCB board;

- 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;

- 32bit FO51K86 MCU, 48mHz maximum clock speed;

- TDK MLCC Low ESR ceramic capacitors;

- Top grade NTMFS5C430NL MOSFET;

- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

Specification:

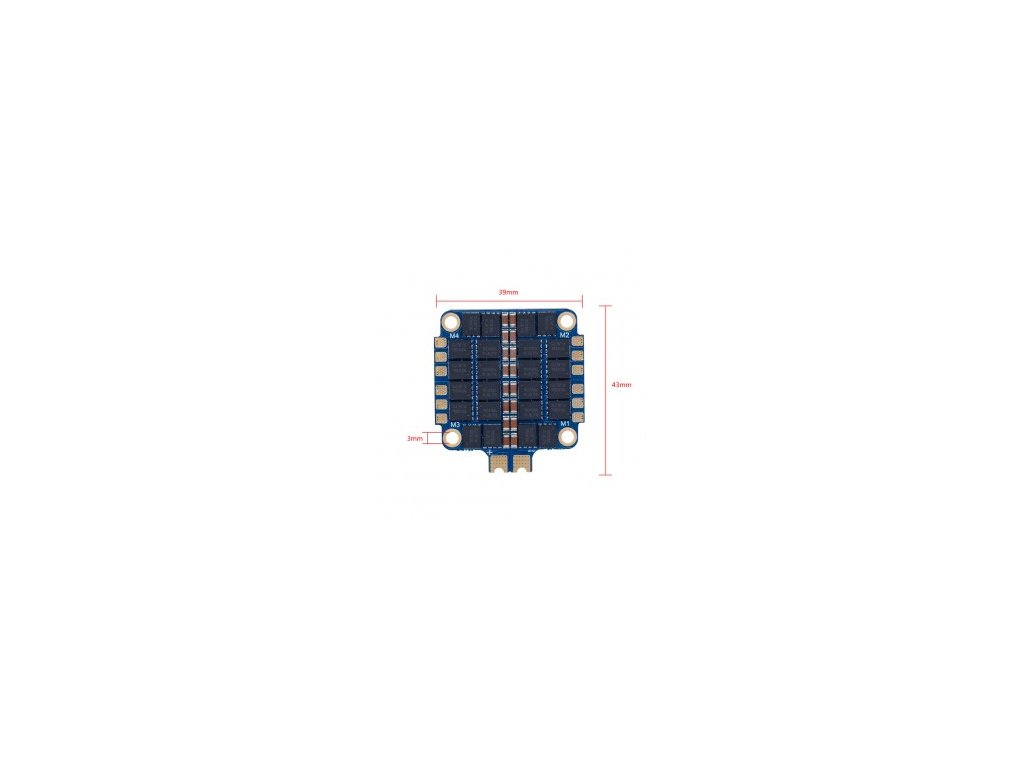

- Dimension: 43*39mm

- Mounting Holes: 30.5*30.5mm/Φ3mm

- Weight:14.4g

- Volts input: 2-6S

- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

- Current sensor: Yes

-Telemetry：Supported

- BEC: No

- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.

- Target: iFlight-BL32-4IN1

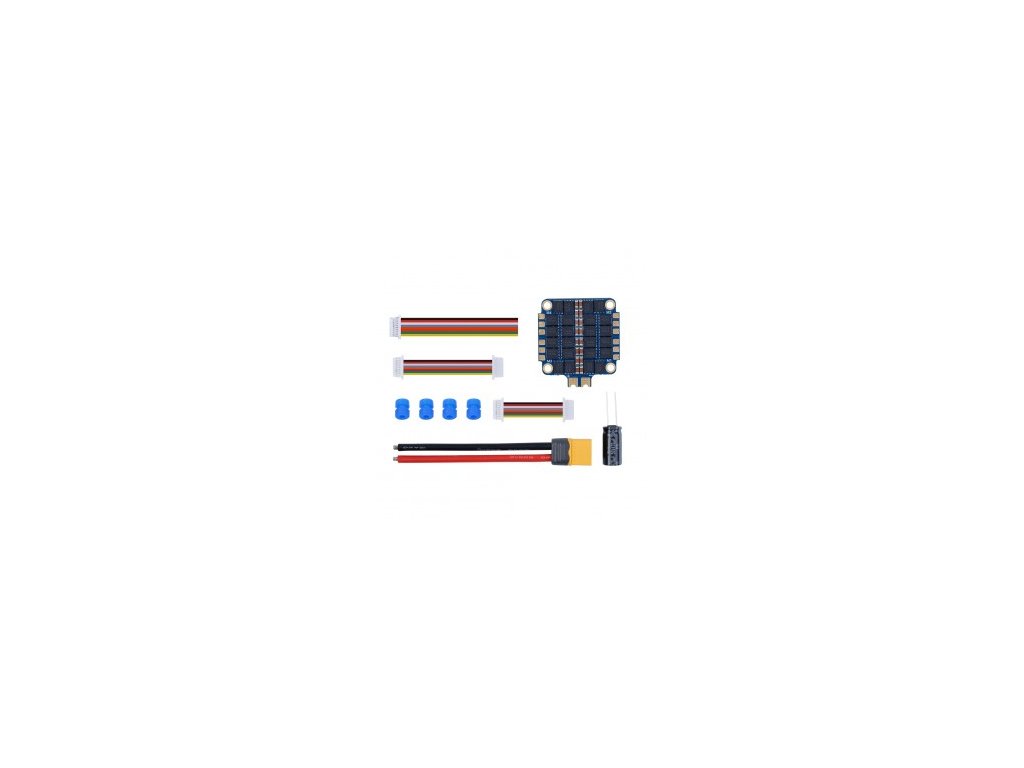

Package included:

- 1 x SucceX 50A 2-6S 4-in-1 ESC Dshot1200
