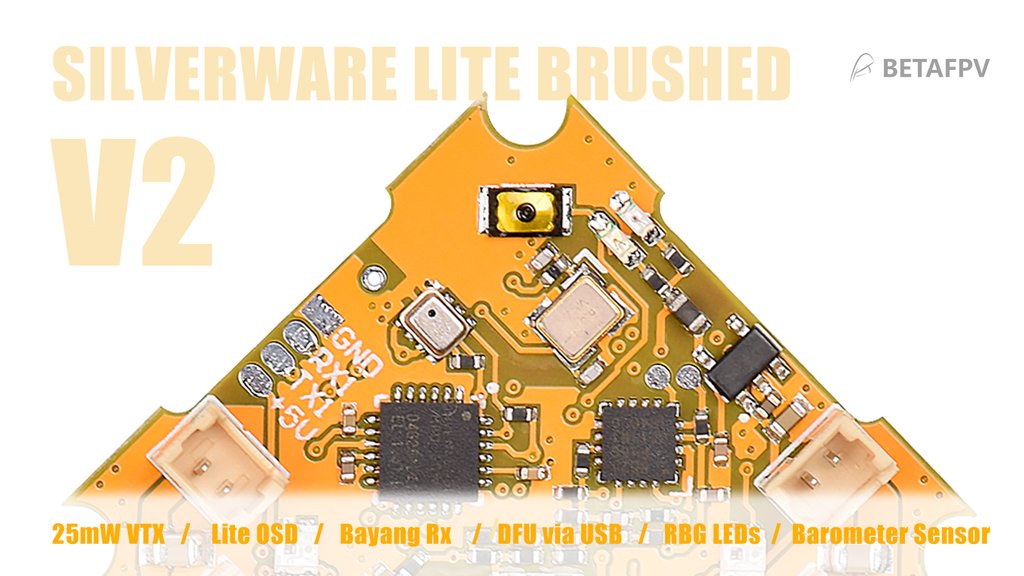

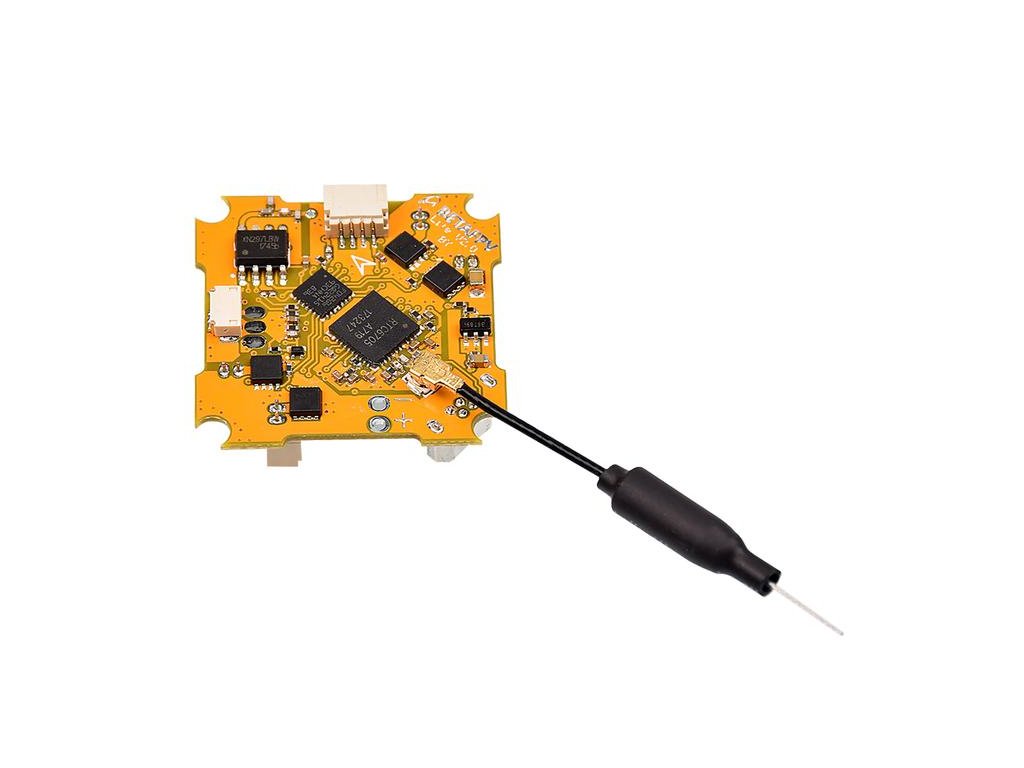

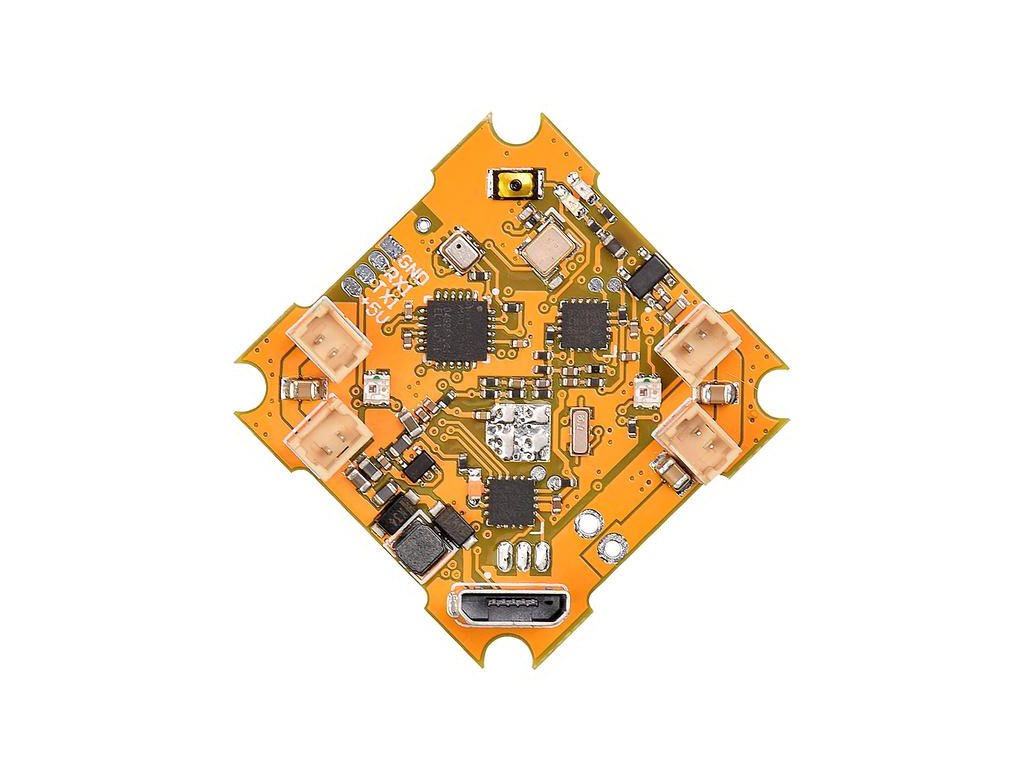

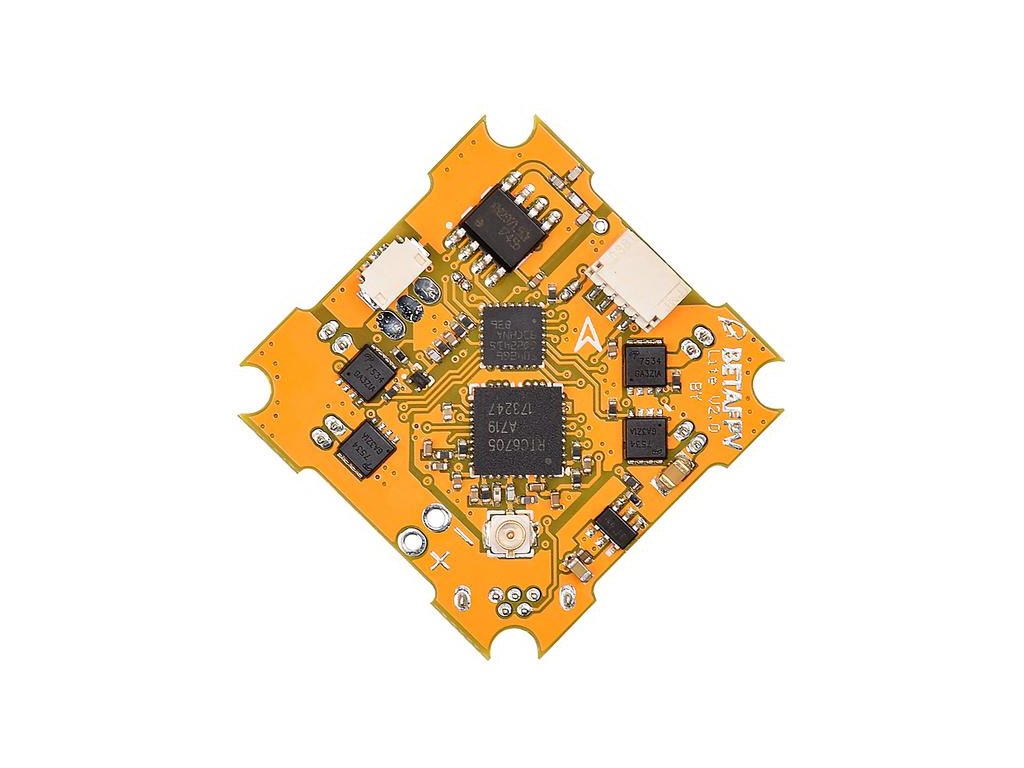

BETAFPV Lite Brushed Flight Controller
Related products
Product detailed description
Specifications:
CPU: STM32F042
Gyro: MPU6050
ESC.
26mm x 26mm, fully compatible with Inductrix square and mounting pattern.
Receiver: bayang protocol
Power cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector

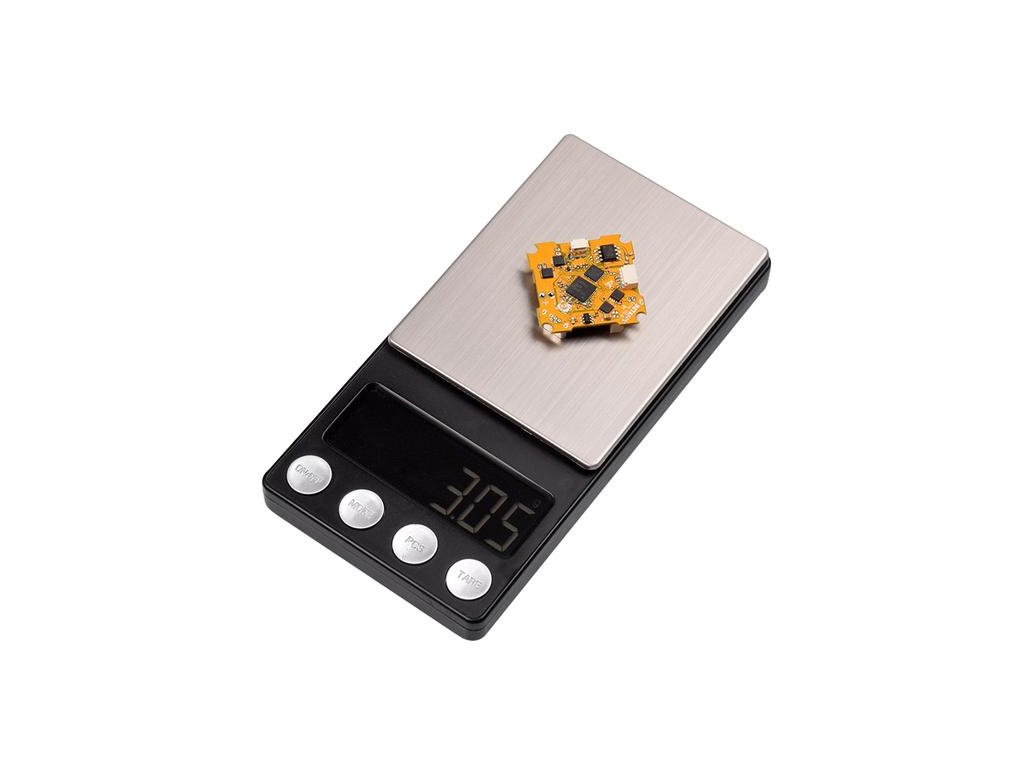

Weight: 2.5 g
Currently, the built-in receiver is compatible with the Bayang protocol. Here is a list of radio transmitters that may be compatible with this FC board. The board includes the Silverware system
LiteRadio transmitter
RF module BETAFPV LiteModule (with PA, range > 300 m, suit for Frsky Tanaris QX7 X9D Plus X12S, Flysky TH9X, Turnigy 9XR / 9XR PRO)
Radio transmitter for toy drones like JJRC H67, Everyine E011 etc. that uses Bayang protocol
Jumper T8SG radio transmitter
MTX-9D Multiprotocol Module
Another 4in1 multiprotocol module that supports Bayang protocol

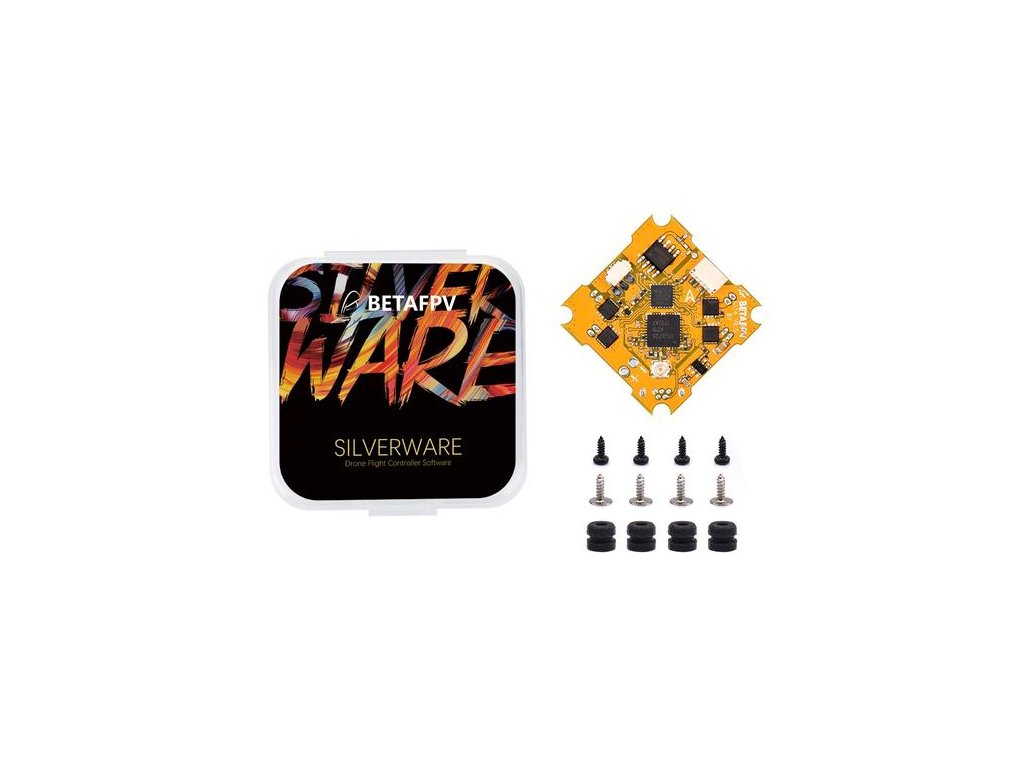

Package contents:
