Vector DC

Product detailed description

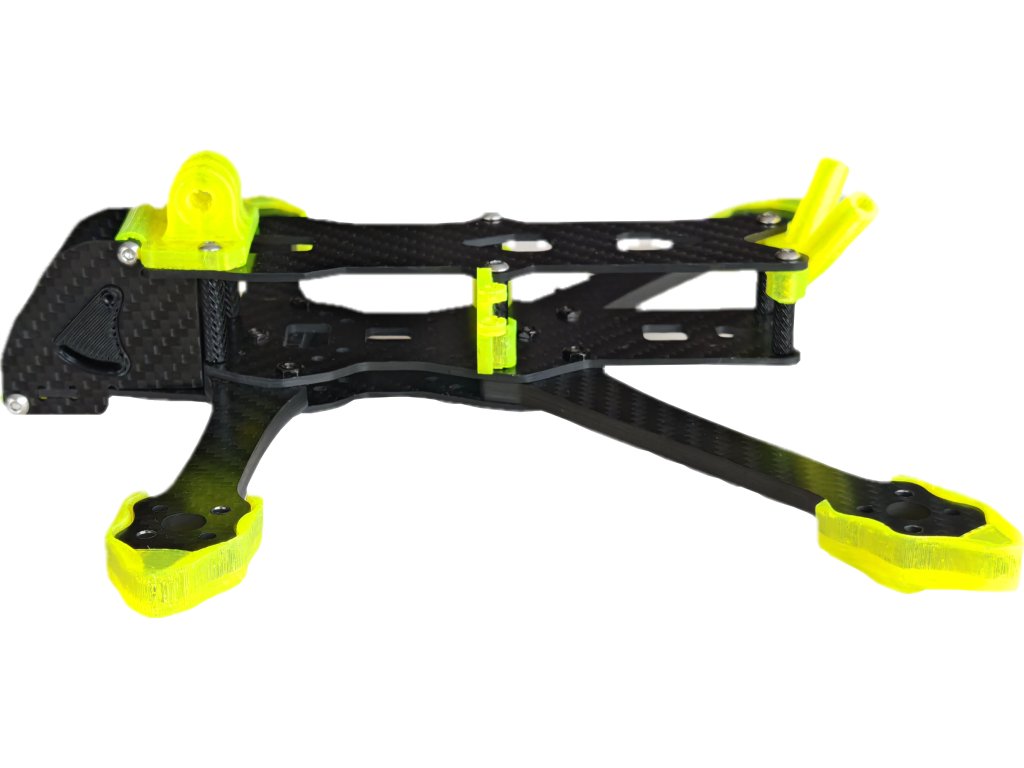

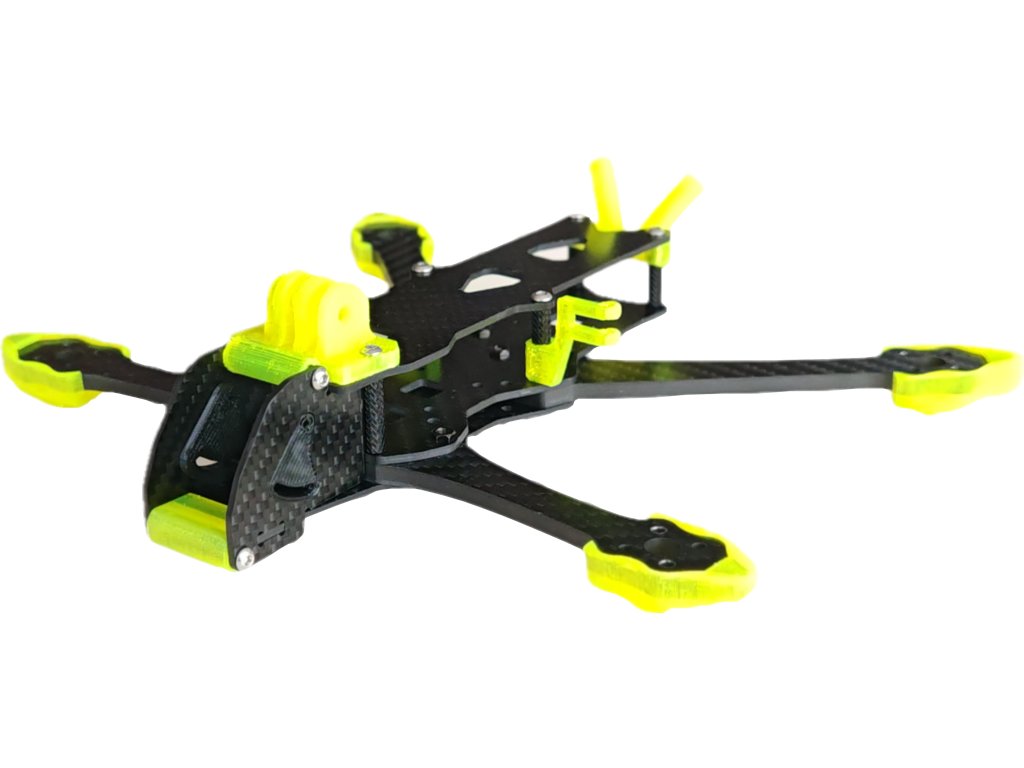

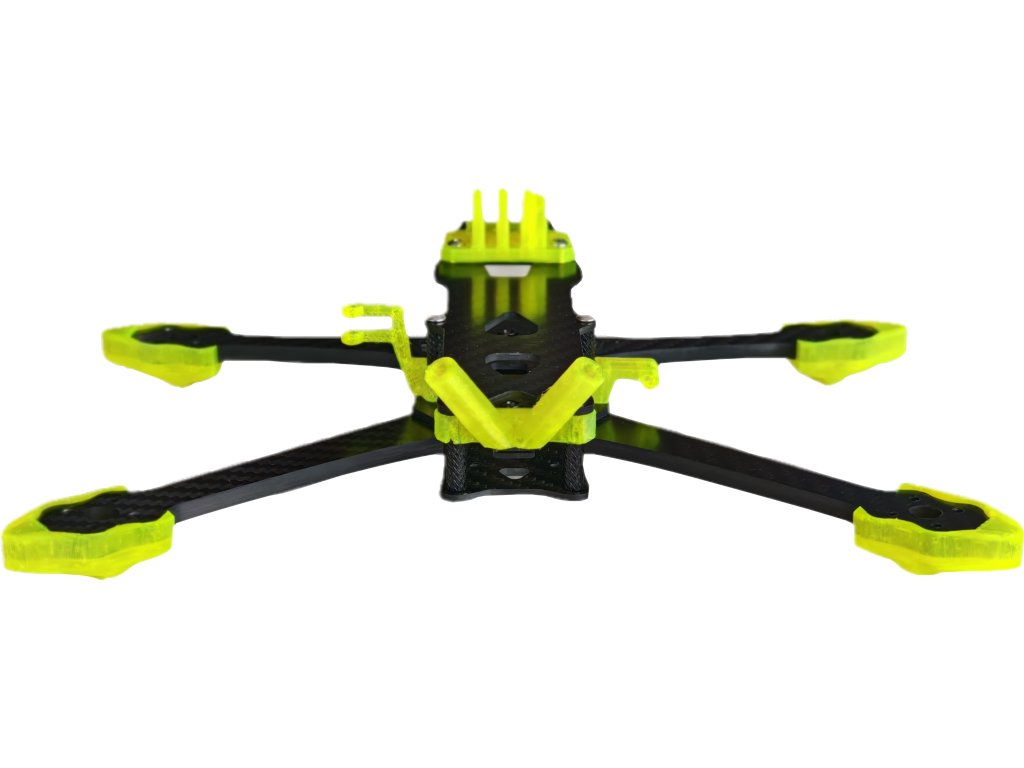

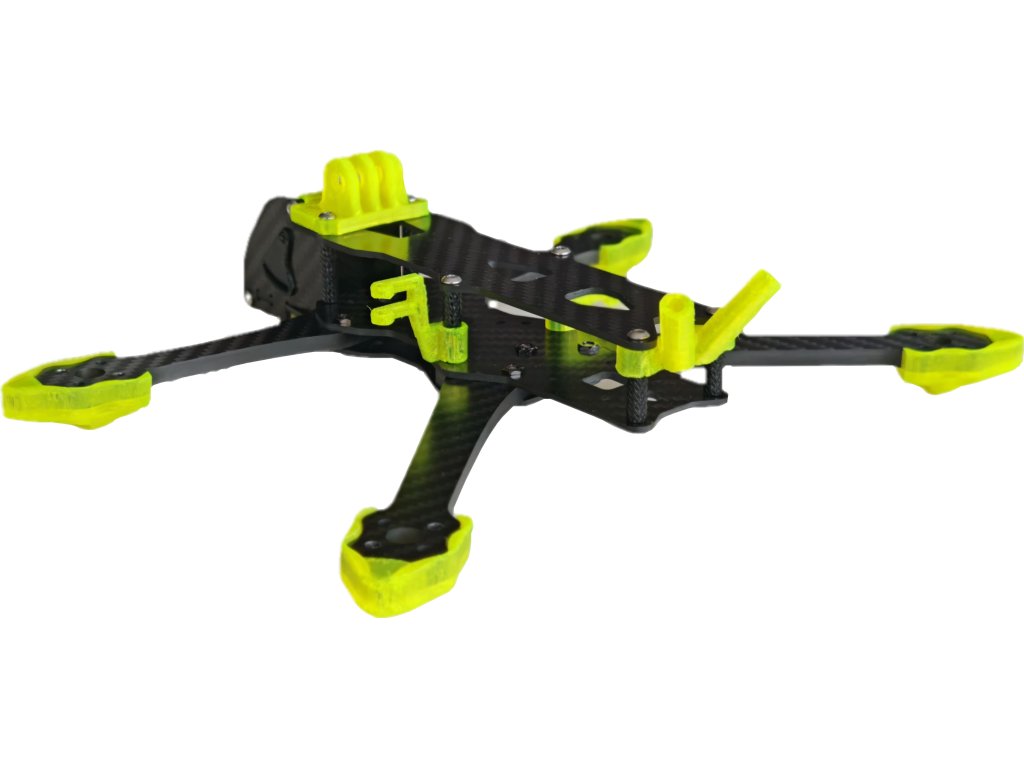

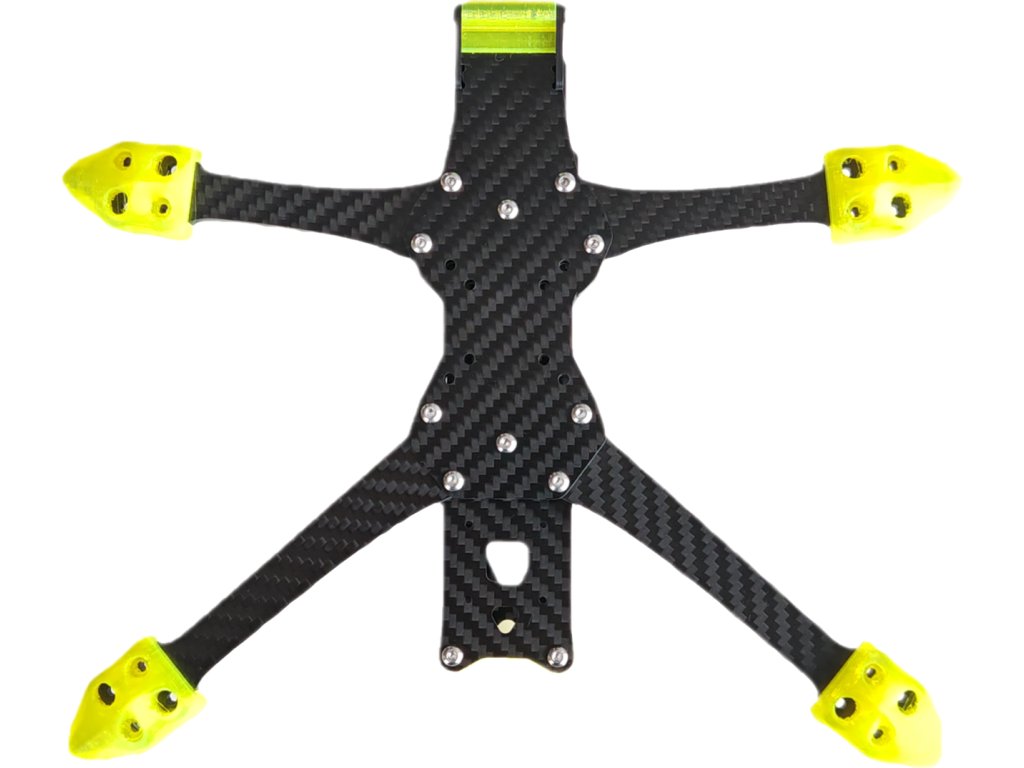

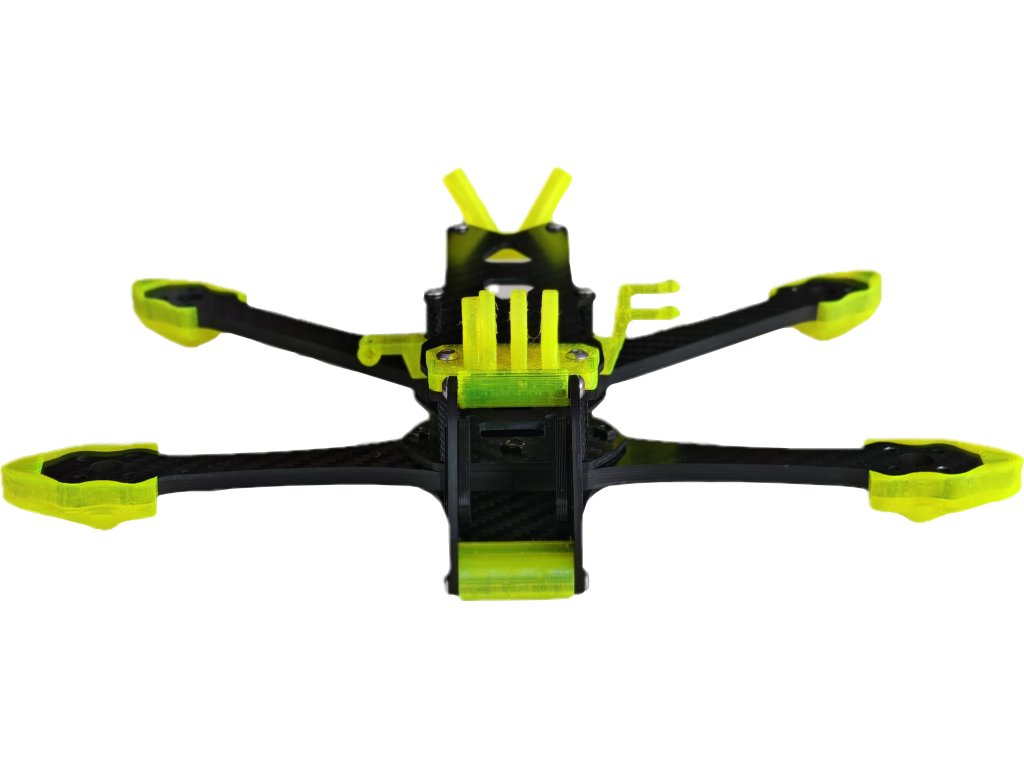

This 5-inch FPV DeadCat-style frame is inspired by racing frames in terms of simplicity and durability, making it the perfect choice for freestyle pilots who want a clear view with no props in the frame, high stiffness, easy assembly, and full compatibility with modern HD systems – including the DJI O4 Pro air unit. Split arms allow for quick and easy replacement.

Key Features:

• Frame Type: DeadCat (front arms extended for a cleaner camera view)

• Suitable for Propellers: up to 5.1"

• Motor Compatibility:
  – 22xx to 23xx motors (recommended: 2207 / 2306)
  – 16×16 mm mounting pattern

• Battery Compatibility:
  – 4S and 6S LiPo (top or bottom mount)

• Flight Controller Stack:
  – 20×20 or 30.5×30.5 mm
  – Stack height up to 20 mm

Construction:

• Material: High-strength 3K carbon fiber composite

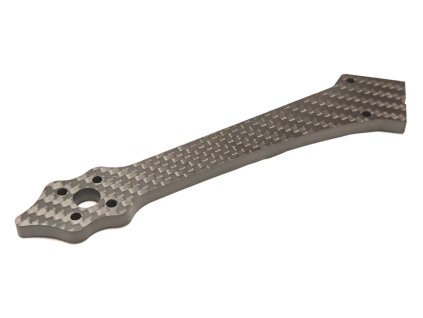

• Arm Thickness: 5 mm – impact resistant for freestyle

• Top/Bottom Plate: 2 mm

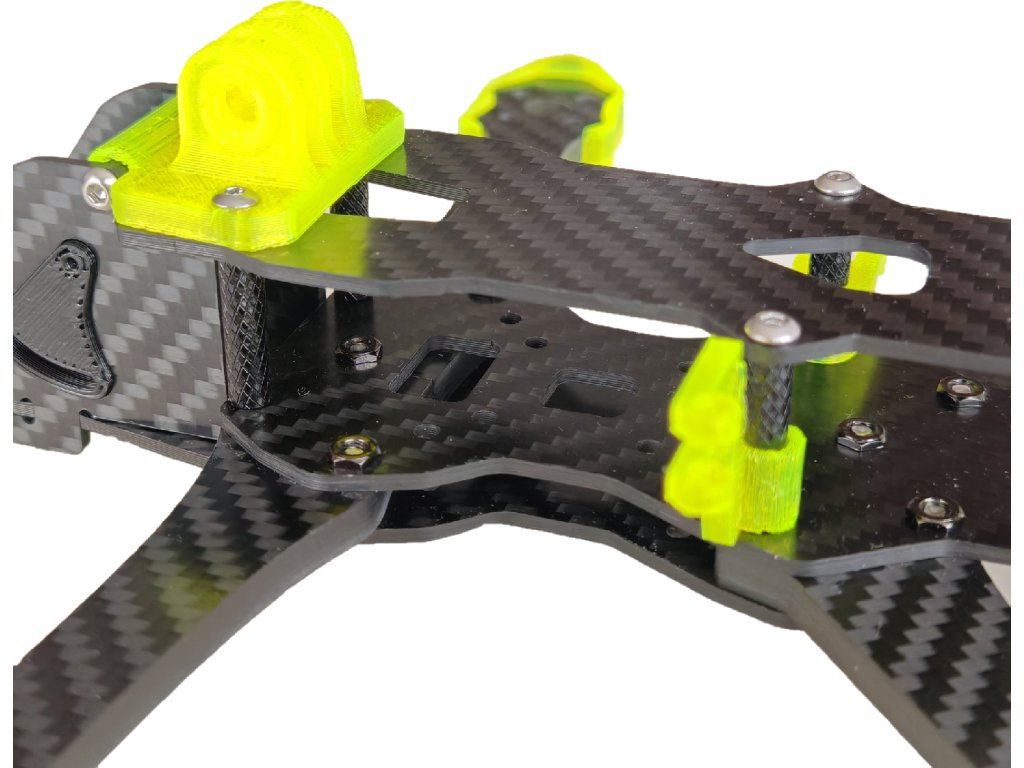

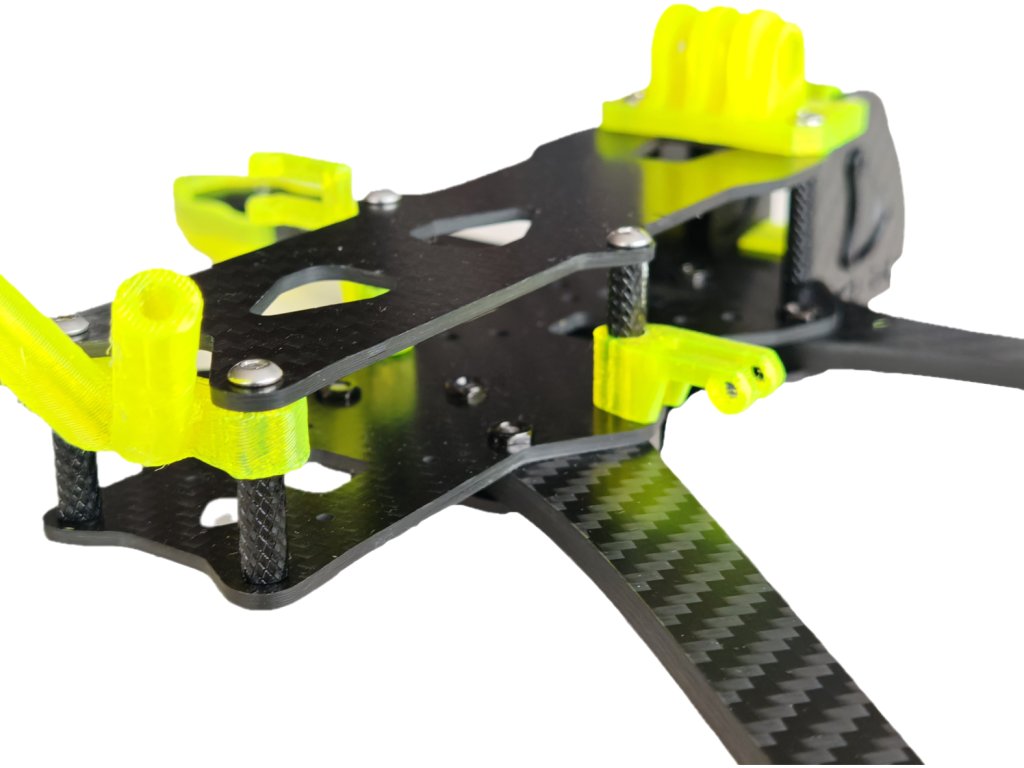

• TPU Parts (colored):
  – Arm guards with RX antenna holders
  – GoPro mount (adjustable base)
  – Antenna holder for DJI O4PRO

Weight:

• Frame incl. hardware and 3D prints: 175 g

Video System Support:

• HD: Fully DJI O4 Pro ready (including air unit & antenna mount support)

• Analog: Compatible with standard FPV cameras as well

Flight Characteristics:

• DeadCat geometry ensures prop-free view in DJI camera footage

• More agile on pitch, stable on roll

• Very rigid & vibration dampening – great for clean footage, even without stabilization

Included in Package:

• Vector frame (complete carbon part set)

• Mounting hardware

• Set of 3D printed parts

• Battery anti-slip pad

Suggested Setup:

2207 1950KV motors, 6S battery, HQProp Ethix P2 props, ESC rampup power 30, timing 10°
