ToolkitRC M6DAC V2 2x 100/400W
Product detailed description
ToolkitRC M6DAC V2 is a powerful dual-channel charger that combines the convenience of an integrated AC power supply with extreme performance when powered by an external DC source. This V2 version features an upgraded metal roller for precise control and high charging accuracy, making it the ideal choice for demanding drone pilots and hobbyists.

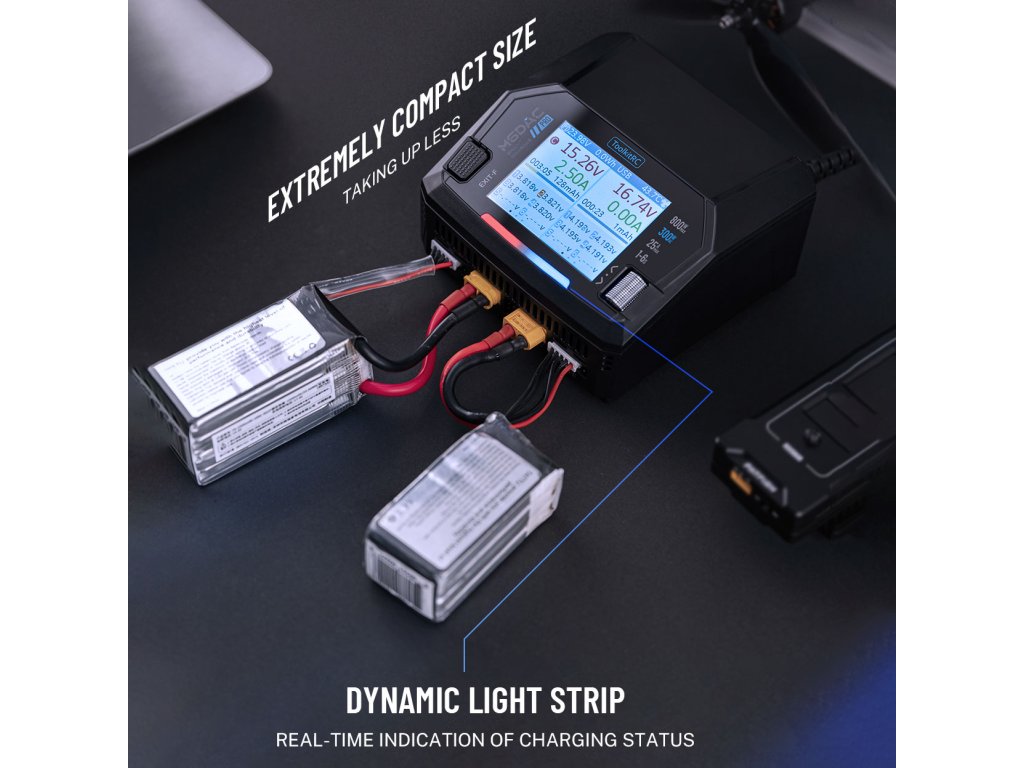

- Dual Channel Charging: Features two independent channels allowing you to charge two different batteries simultaneously with different settings.
- Flexible Power Options: An integrated 200W AC power supply for home use is complemented by a DC input (7–28V) that unlocks a total power of up to 700W (up to 800W in specific synchronous modes).
- High Power and Speed: Offers up to 400W per channel in asynchronous mode (via DC input), while synchronous mode combines both channels for a single battery at up to 700W and 28A.

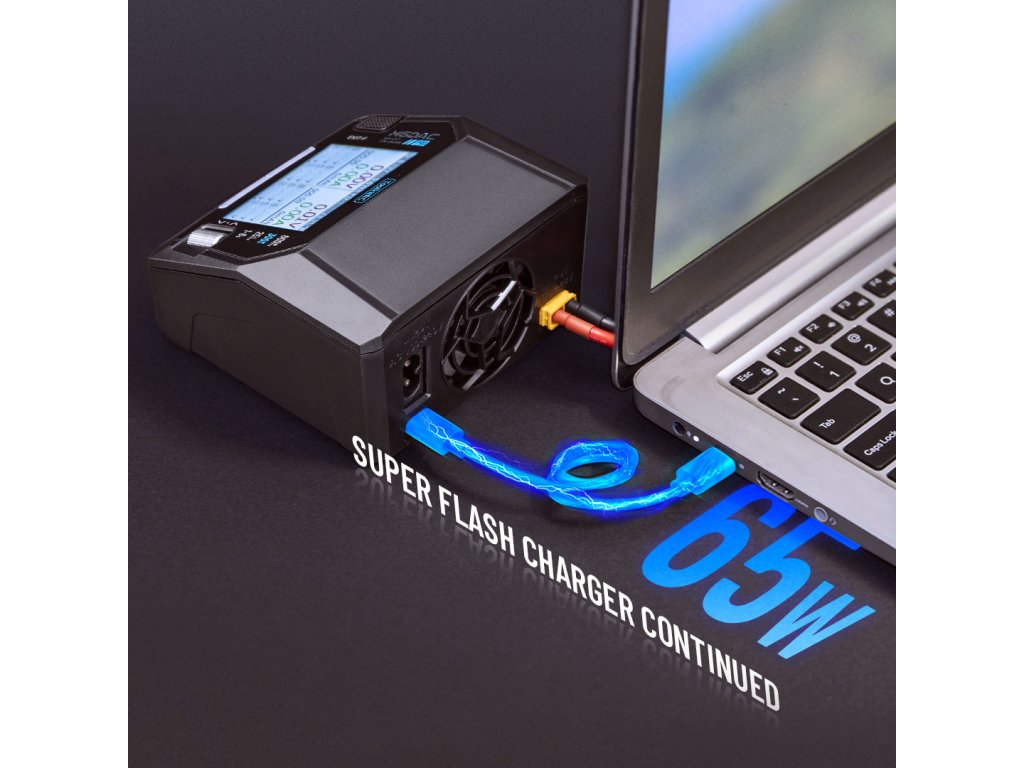

- USB-C Fast Charge: The built-in USB-C port with 65W Power Delivery (PD) protocol quickly charges your phone, laptop, or action camera directly at the field.
- Smart Functions: Can be used as a programmable laboratory power supply or for testing the internal resistance of battery cells.

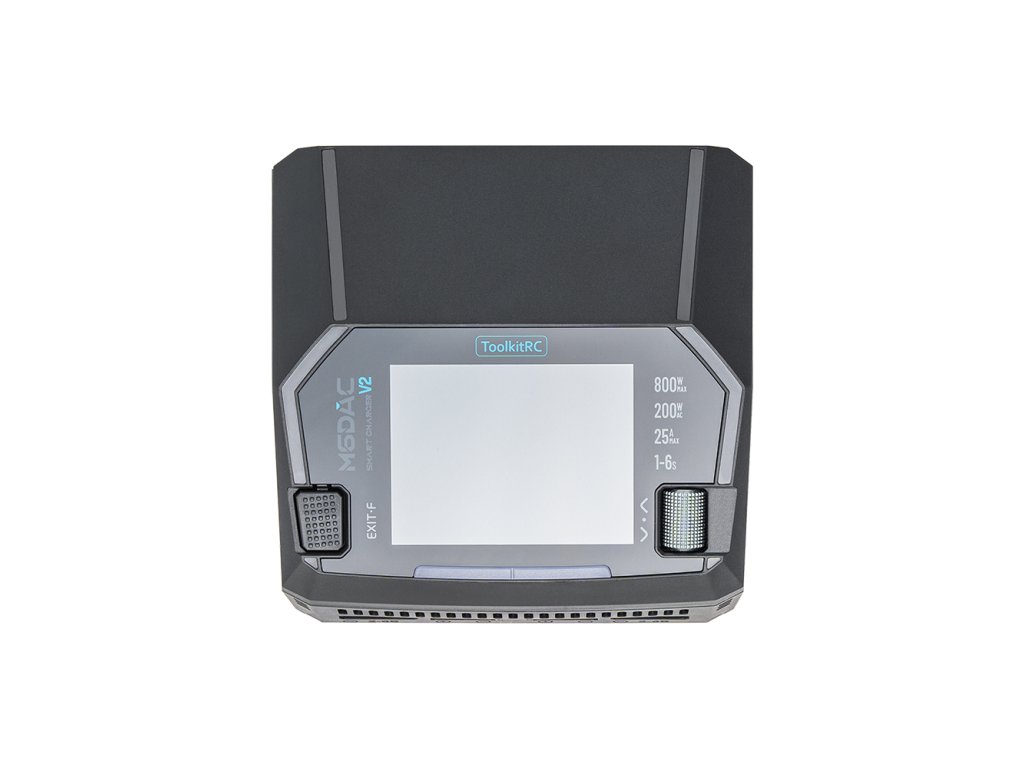

- Quality IPS Display: The 2.8" color display (320x240 px) is easily readable even in direct sunlight and provides a detailed overview of the charging process.
Technical Specifications

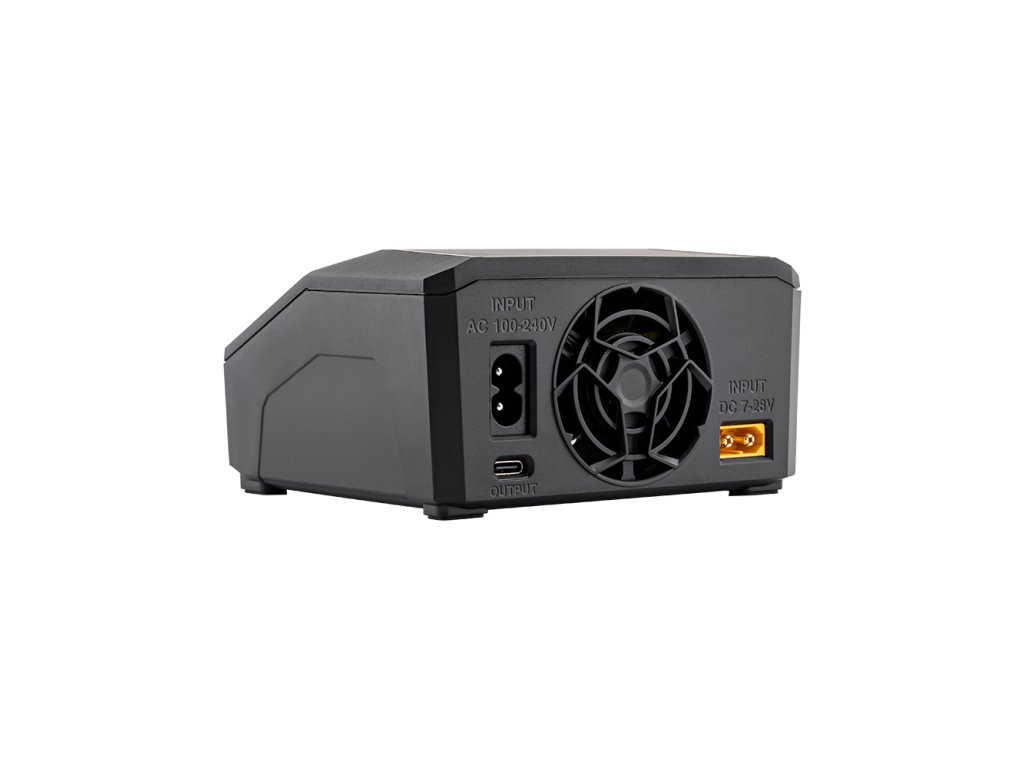

- Input Voltage: AC 100–240V / DC 7–28V (max. 30A)
- Charging Power (AC): 200W total
- Charging Power (DC): 2x 400W (asynchronous) / 1x 700W (synchronous)
- Charging Current: 0.1–16A per channel (up to 28A in synchronous mode)
- Discharge Power: 15W per channel (Recycle mode up to 400W)
- Battery Support: LiPo, LiHV, LiFe, Li-ion, LTO (1–6S), NiMH (1–16S), Pb (1–10S)
- Balance Current: 1000mA (accuracy < 0.005V)
- USB-C Output: 65W (PD, QC, AFC, FCP, SCP)

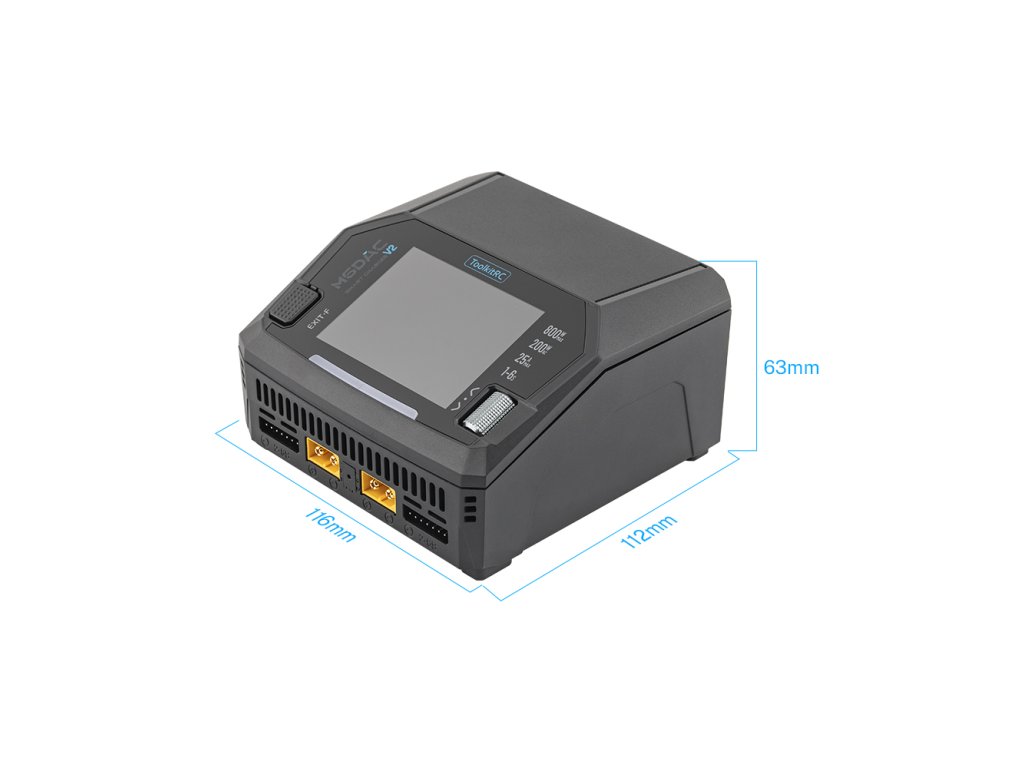

- Dimensions & Weight: 116x112x63 mm, 570g
