ToolkitRC M6DAC Pro 2x 150/400W
Product detailed description
ToolkitRC M6DAC Pro is a professional dual-channel charger that pushes the boundaries of power and efficiency in a compact form factor. The Pro version is engineered for maximum reliability whether powered by AC at home or DC in the field, featuring superior balancing accuracy and a refined user interface for seamless operation.
- Extreme Power Flexibility: Features a built-in 200W AC power supply for convenient home use. When connected to an external DC source (7–30V), it delivers a massive total output of up to 800W in synchronous mode.
- Smart Power Distribution: In AC mode, the charger intelligently manages the 200W across both channels. In DC mode, it provides 2x 400W asynchronously, allowing for rapid simultaneous charging of large battery packs.
- Synchronous Mode: For heavy-duty tasks, both channels can be combined into a single output with a charging current of up to 35A, perfect for fast parallel charging or high-capacity batteries.
- High-End USB-C Output: The integrated 65W Power Delivery port allows you to charge modern laptops, smartphones, and USB-C powered drones without extra adapters.
- Diagnostic Toolkit: More than just a charger, the M6DAC Pro functions as a voltage meter, internal resistance tester, PWM/PPM/SBUS signal tester, and a programmable laboratory power supply.

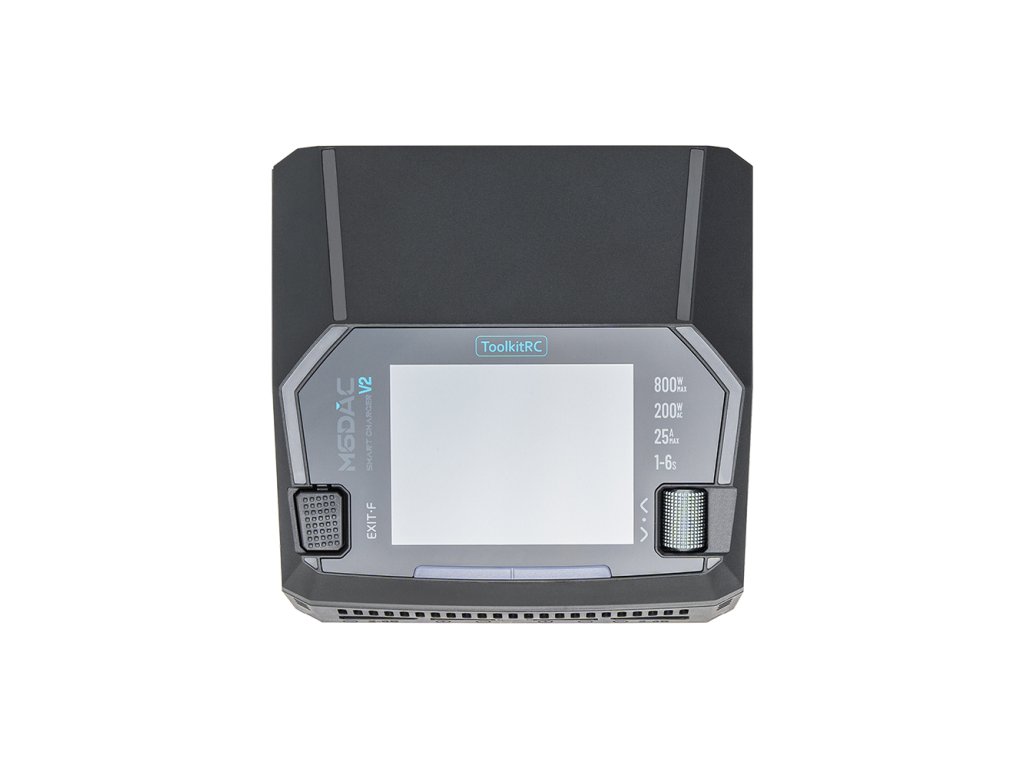

- Durable Design & Display: The bright 3.5" IPS display offers wide viewing angles for perfect readability, while the enhanced cooling system ensures stability even under full load.
Technical Specifications

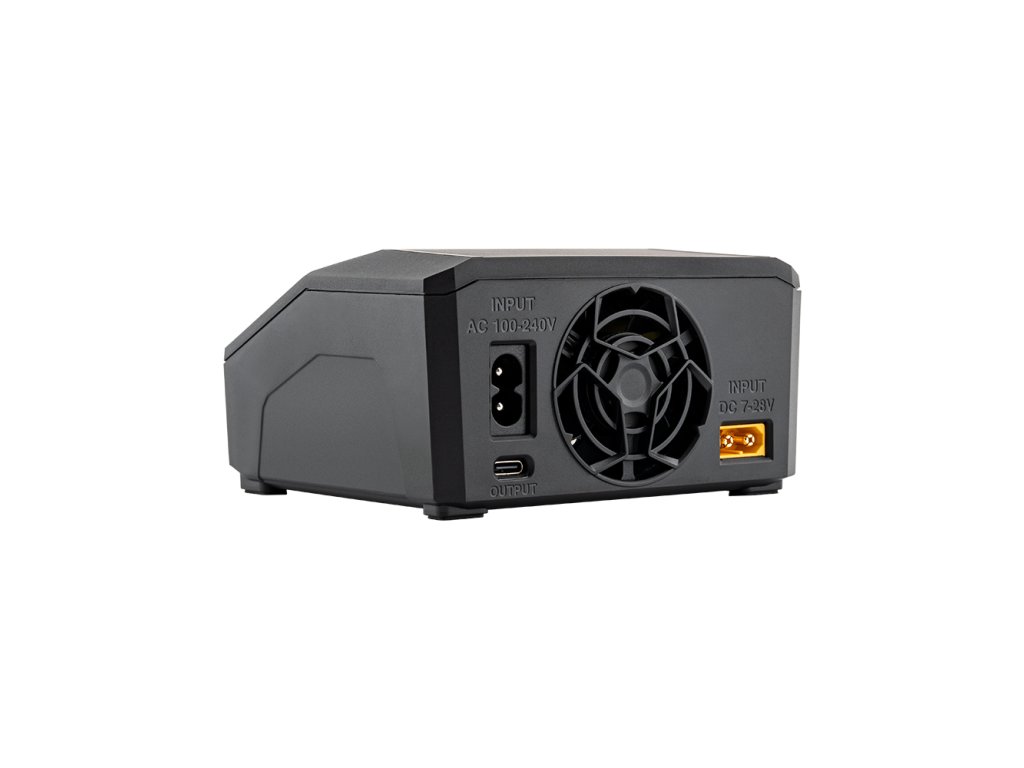

- Input Voltage: AC 100–240V / DC 7–30V (max. 40A)
- Charging Power: AC 200W / DC 2x 400W (or 1x 800W synchronous)
- Charging Current: 0.1–20A per channel (up to 35A synchronous)
- Discharge Power: 15W (Recycle mode up to 800W)
- Battery Support: LiPo, LiHV, LiFe, Li-ion, LTO (1–6S), NiMH (1–16S), Pb (1–10S)
- Balance Current: 1500mA (accuracy < 0.005V)
- USB-C: 65W (PD, QC, AFC, FCP, SCP)
- Dimensions & Weight: 127x106x57 mm, 520 g
