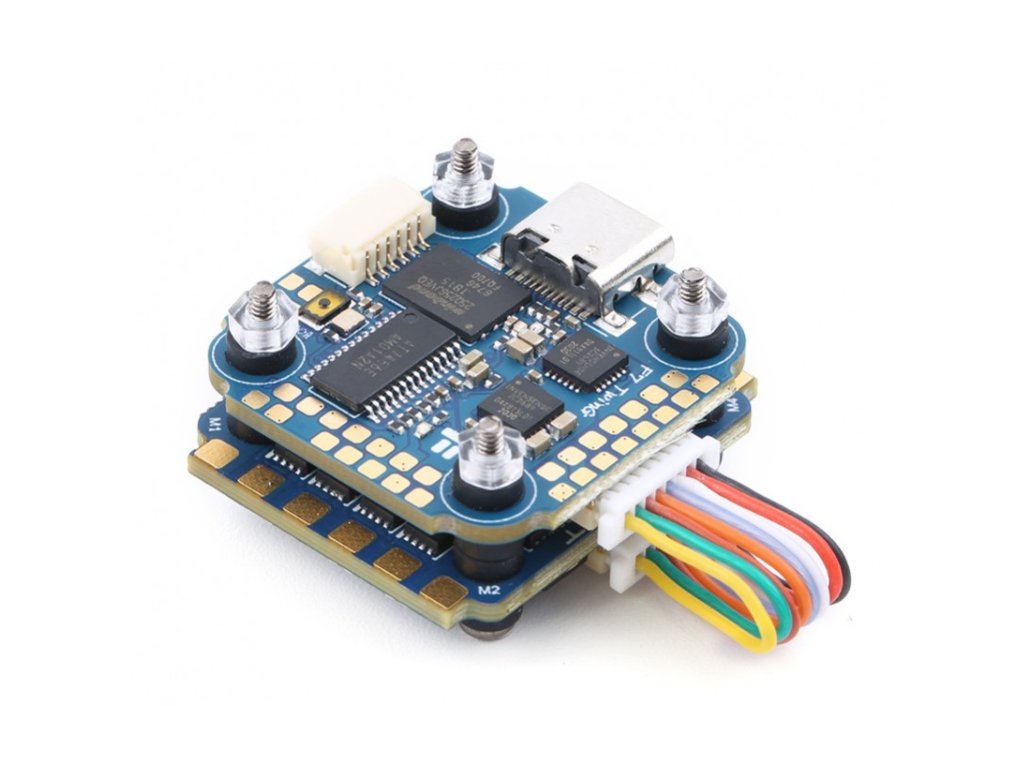

SucceX-D Mini F7 Stack (F7+45A)

Product detailed description

The SucceX-D Mini F7 is designed to work seamlessly with DJI's new HDI FPV system. To make things as simple as possible, there is a connector specifically for the DJI flight unit, so installation should be a breeze. Additionally, instead of Micro USB, there is the popular and reliable USB Type-C, which makes it easy to connect.

Features:

- Universal USB Type-C connector instead of micro USB

- No need to solder tiny wires

- Supports BLHeli pass-through for easy ESC updates and configuration.

- Designed to support DJI Digital FPV.

SPECIFICATIONS SucceX-D F7 TwinG:

-MCU: 216 MHz STM32F722

-Gyro: TwinG ICM20689

-Blackbox: 32 MB

-Betaflight OSD: YES

-BEC: 5V 2.5A

-9V 2.5A 18W Design for DJI FPV Air Unit

-Uarts: 5

-ESC Telemetry: UART5

-INA Pad: nuart2

- Input Voltage: 2-6S, MAX 8S

-Firmware: betaflight_4.0.5_STM32F7X2. hex

Size: 27*27mm/20*20mm mounting3

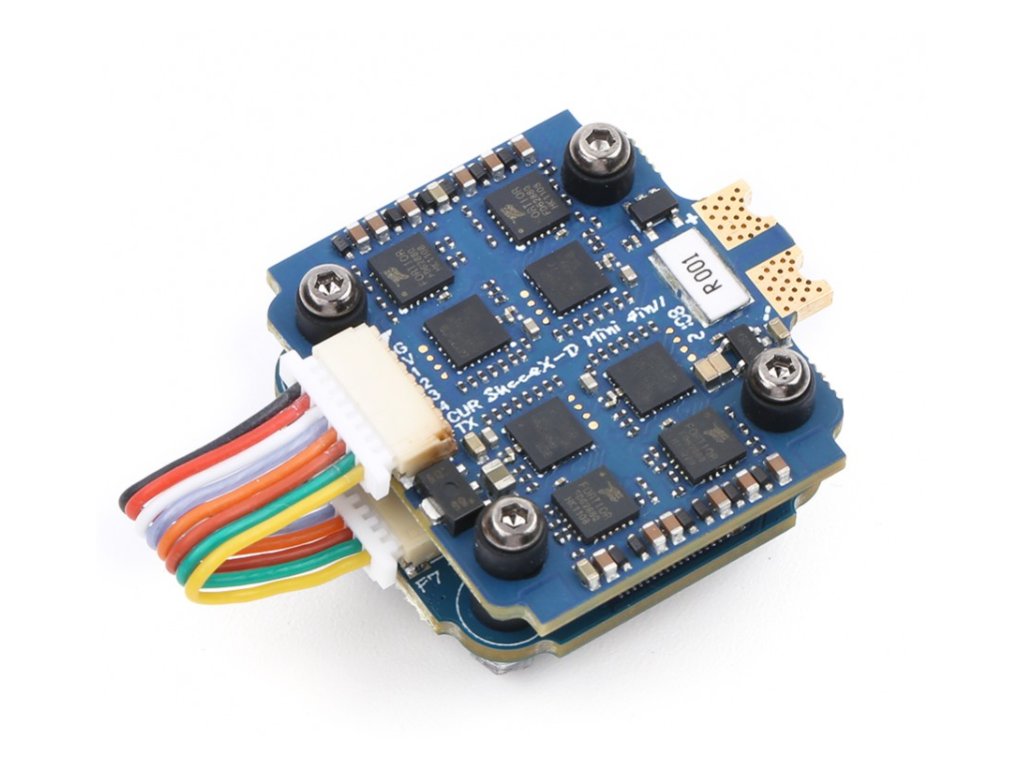

SPECIFICATIONS SucceX Mini 45A ESC:

- MCU: STM32F051K66

- Current sensor: yes

- Input: 2-6S lipo

- Telemetry: Yes

- Installation hole: 20x20mm, M3

- Target: iFlight-BL32-4IN1

- BLHeliSuite Download: http: //www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

- Constant: 45A

- Burst: 55A

- Weight: 16.7g

- Dimensions: 31*31mm (including power pads)

- Mounting holes: 20 x 20 mm, M3

- Supports Dshot1200, Proshot, Oneshot, Multishot

Package Contents:

-SucceX-D Mini F7 TwinG FC x 1

-SucceX 40A BLHeli_32 4 in 1 ESC x 1

-DJI compatible wiring harness x 1

-Stack mounting screws and nuts and nuts, cable

NOTE: DJI Air Unit not included
