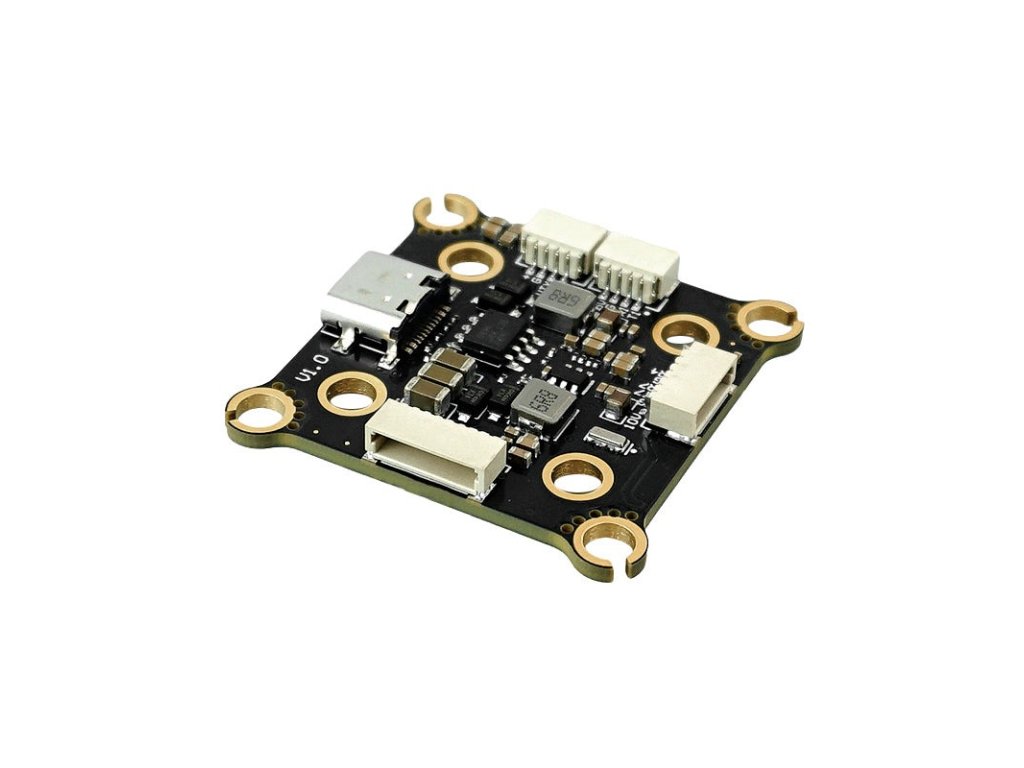

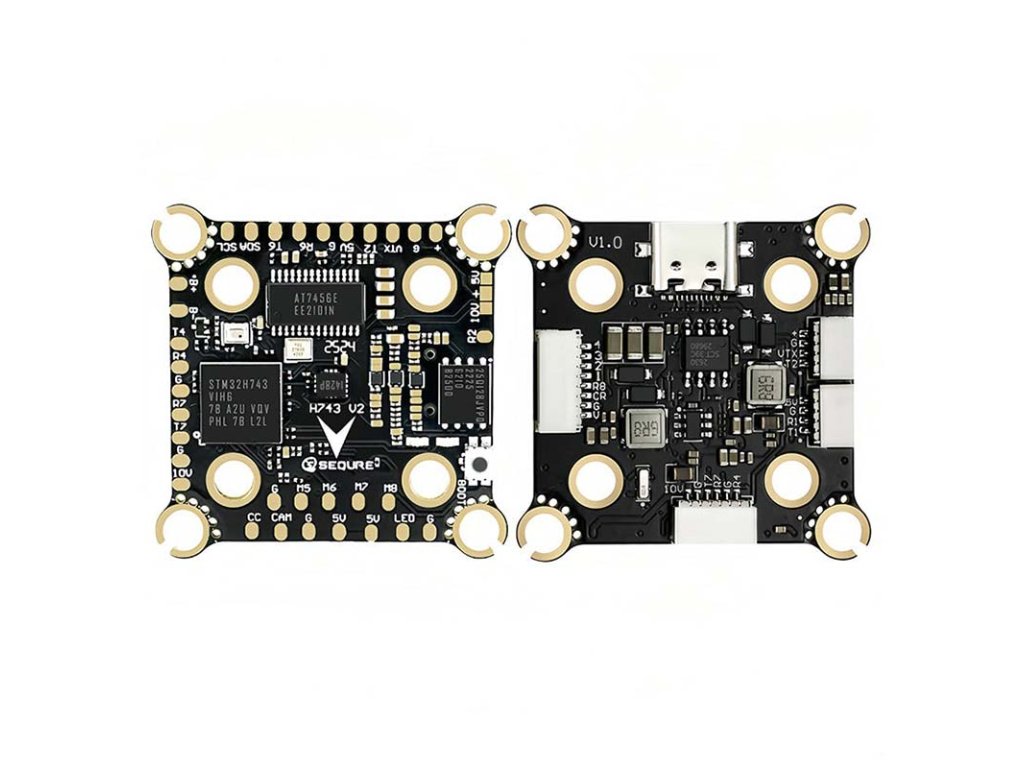

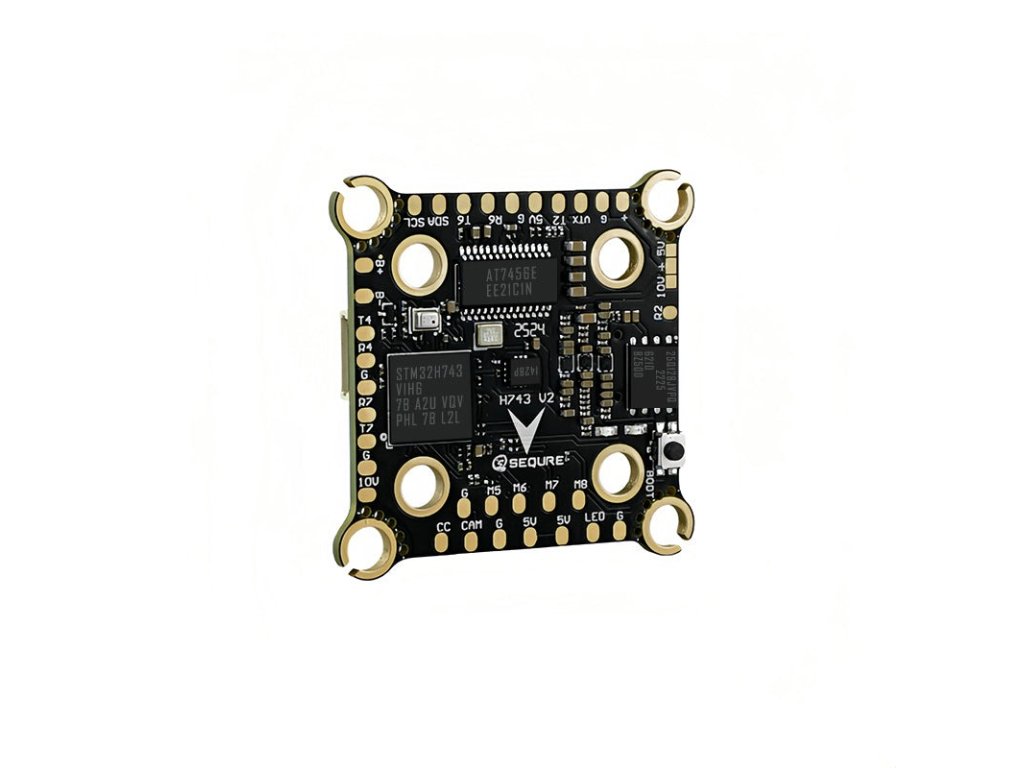

Sequre H743 V2

Product detailed description

The Sequre H743 V2 is a high-performance and versatile flight controller designed for modern FPV drones — from freestyle builds to long-range platforms. Powered by the STM32H743 processor running at up to 480 MHz, it provides outstanding response speed, stability, and precise flight control.

It features a premium ICM42688P gyro, BMP280 barometer, integrated AT7456E OSD chip, and 16 MB BlackBox memory for detailed flight data logging. With 4–8S LiPo support, 20×20 mm and 30.5×30.5 mm mounting options, and control for up to 8 motors, this FC is extremely flexible and compatible with a wide variety of frame types.

Key features:
• Processor: STM32H743 (32bit)
• Gyroscope: ICM42688P
• Barometer: BMP280
• OSD chip: AT7456E
• BlackBox memory: 16 MB
• Firmware support: Betaflight, iNav, ArduPilot
• Input voltage: 4–8S LiPo
• Motor outputs: up to 8 (X8 configuration)
• BEC outputs: 5 V/2.5 A and 10 V/2 A
• UART ports: 6
• Mounting holes: 20×20 mm and 30.5×30.5 mm
• Dimensions: 36.5×36.5×6 mm
• Weight: 7.3 g

Package includes:
• 1× Flight Controller Sequre H743 V2
• 1× Cable set
• 1× Softmount set
• 1× Beeper
