    RP2 V2 ExpressLRS 2.4ghz Nano Receiver

    59949 3 screenshot 1
    €19,63 €16,22 excl. VAT
    In stock (>5 pcs)
    Delivery to:
    27.05.2025
    Delivery offer

    Detailed information

    Product detailed description

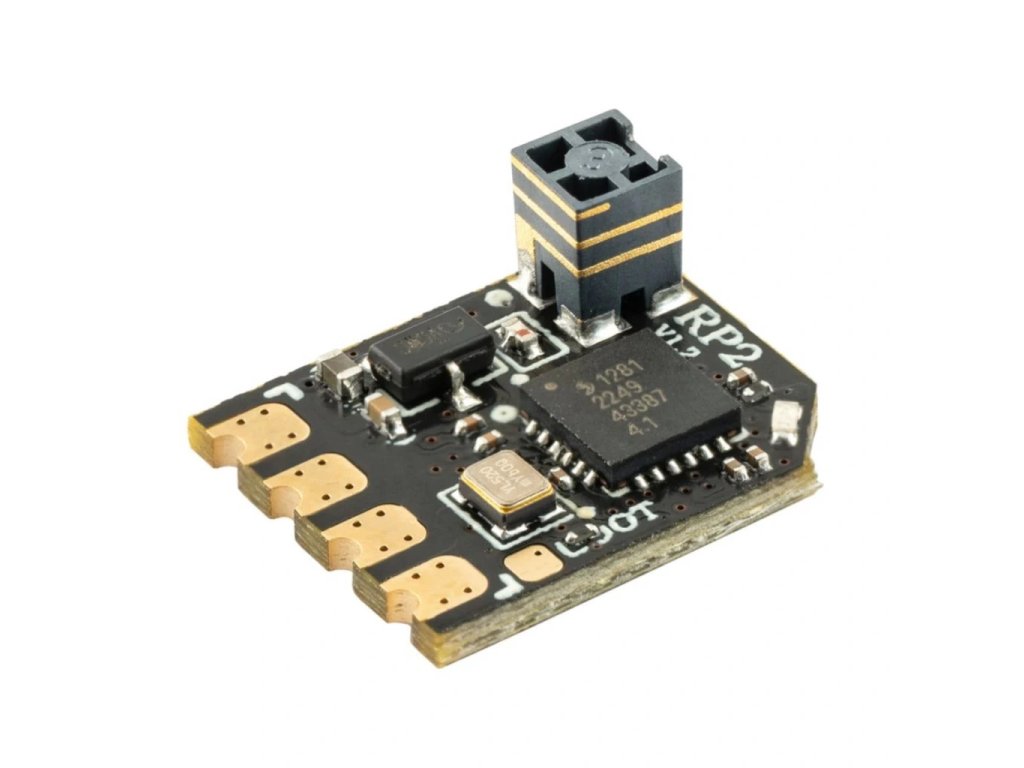

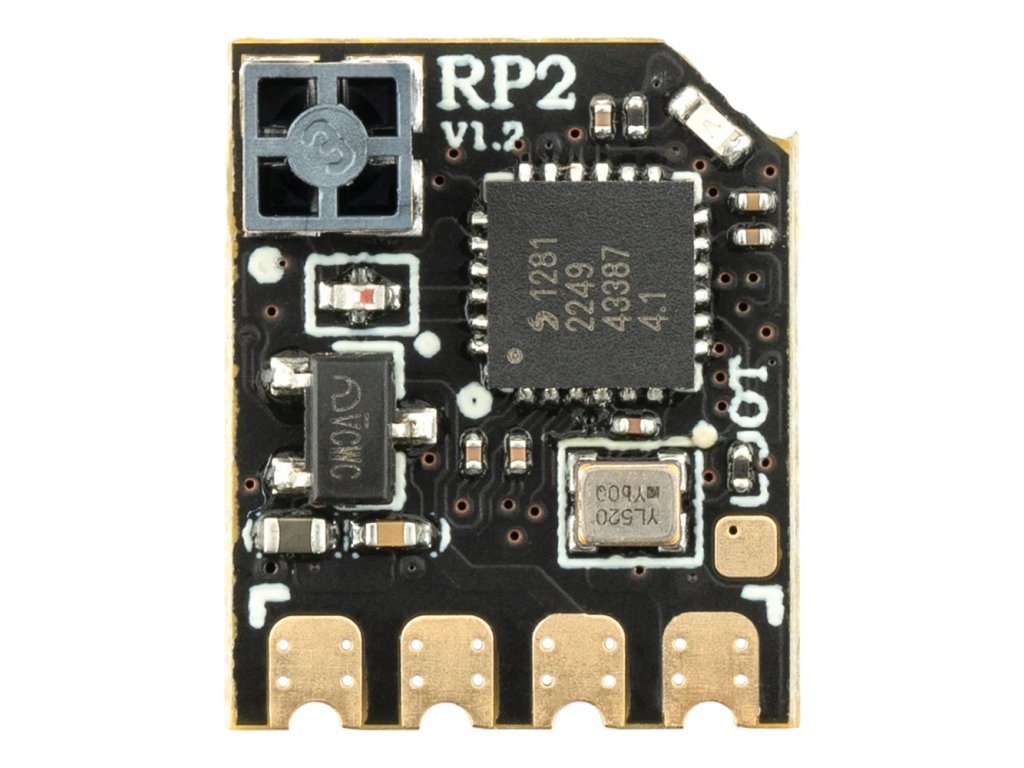

    Radiomaster RP2 V2 ExpressLRS 2.4GHz Nano Receiver

    The Radiomaster RP2 V2 is an ultra-compact and lightweight receiver designed specifically for ExpressLRS systems. It's an ideal choice for FPV racing, freestyle, and long-range flights, especially where space and weight are limited. With its integrated ceramic antenna, it offers a minimalistic and reliable solution without the need for external components.

    Equipped with a powerful SX1281 RF chip and ESP8285 microcontroller, the RP2 V2 supports wireless firmware updates via built-in Wi-Fi. A TCXO oscillator ensures stable operation even under temperature fluctuations. This version also features improved solder pads for easier and more secure installation.

    Key Features:

    • Integrated SMT ceramic antenna – ultra-compact design, no antenna wires or connectors

    • TCXO oscillator – excellent frequency stability under changing temperature conditions

    • Built-in Wi-Fi – wireless firmware updates and configuration via WebUI

    • Optimized PCB layout – improved heat dissipation and durability

    • LED status indicator – clear and convenient feedback during operation

    • CRSF protocol support – fully compatible with modern flight controllers

    Technical Specifications:

    • Model: RP2 Nano ExpressLRS 2.4GHz

    • MCU: ESP8285

    • RF Chip: Semtech SX1281

    • Antenna: Integrated SMT ceramic

    • Frequency Range: 2.404 – 2.479 GHz

    • Update Rate: 25 – 500Hz / F1000Hz

    • Telemetry Power: 10 mW

    • Operating Voltage: 5V DC

    • Dimensions: 13 × 11 × 7 mm

    • Weight: 0.55 g (including antenna)

    • Firmware: ExpressLRS v2.4 (pre-installed)

    • Firmware Target: RadioMaster RP1/2 2400 RX

    • Bus: CRSF

    Package Contents:

    • 1× RP2 ExpressLRS 2.4GHz Nano Receiver

    • 1× CRSF Cable

    • 1× User Manual

    Thanks to its extremely low weight and compact size, the RP2 V2 is perfect for builds where every gram and millimeter counts — from tiny whoops to long-range wings. Whether you're a beginner or a seasoned pilot, this modern, reliable receiver is a smart addition to any FPV setup.
