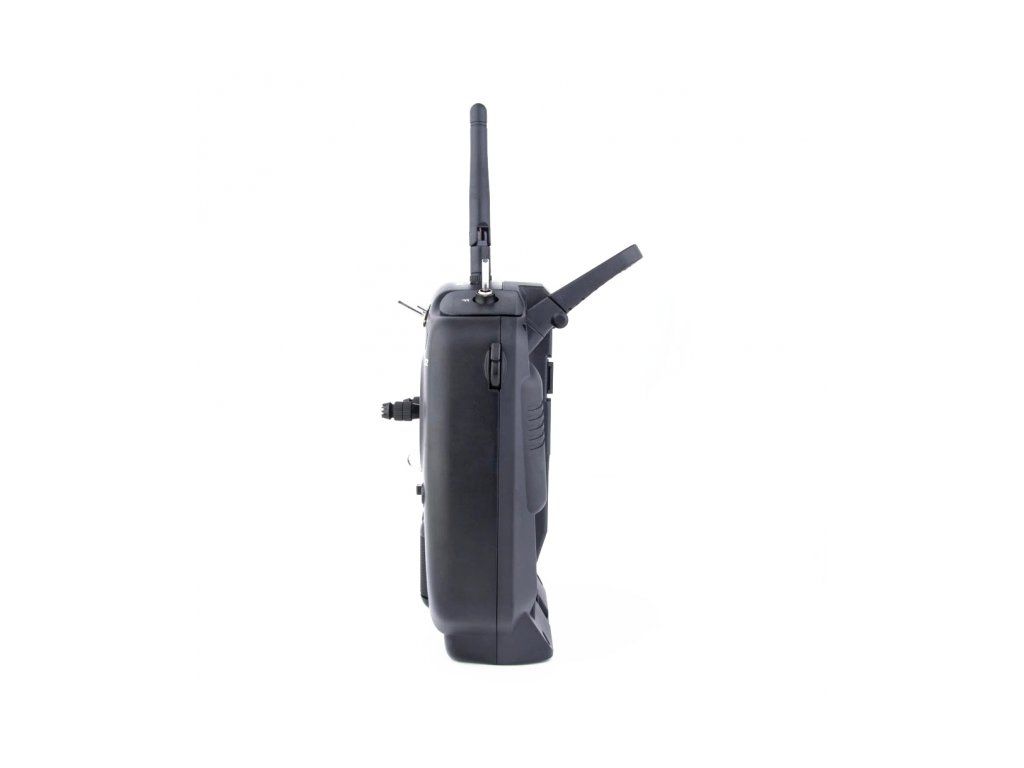

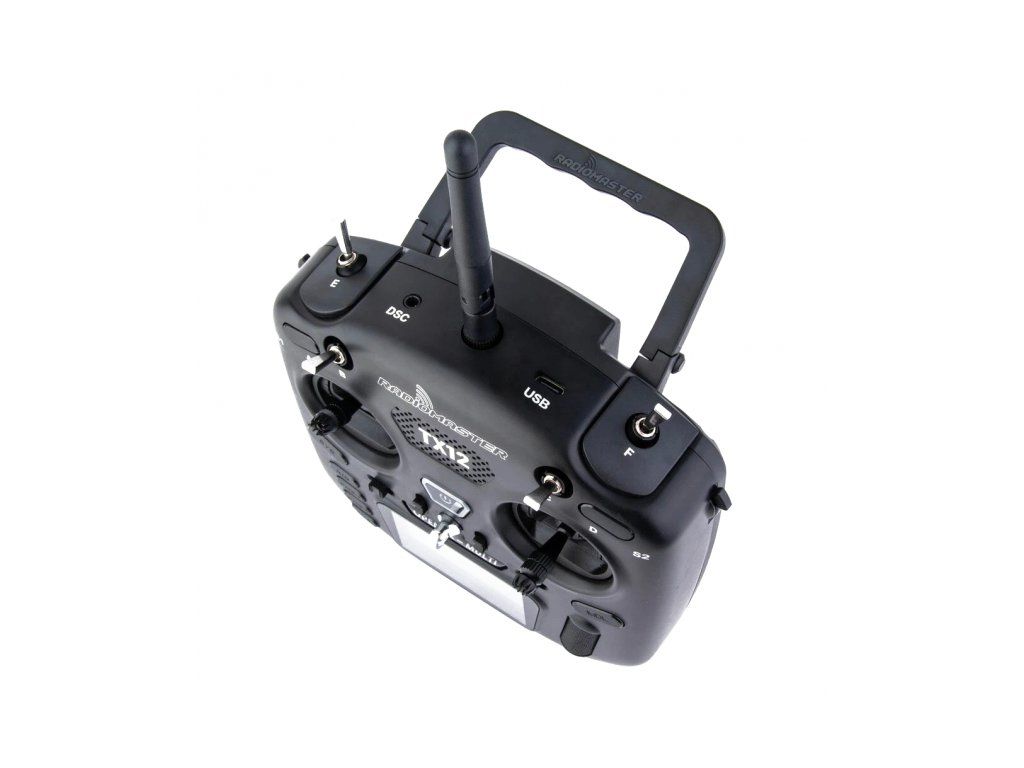

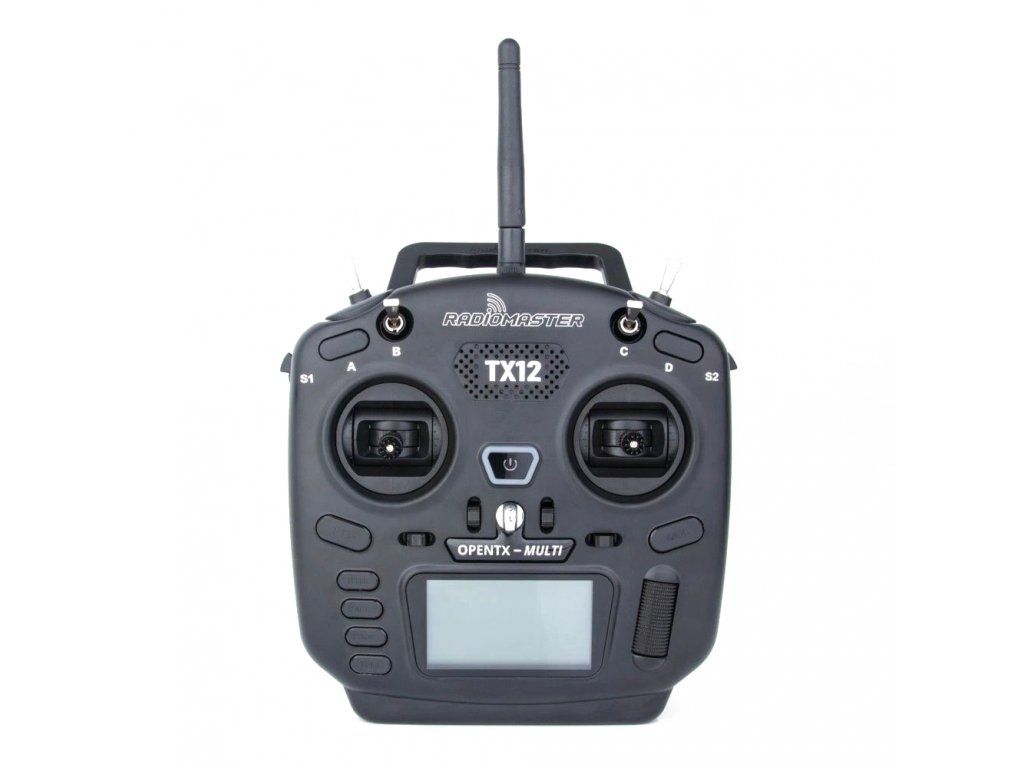

Radiomaster TX12
Related products
Product detailed description
A scaled down version of the TX16S. It uses an integrated transmitter module with a CC2500 transmitter chip. The transmitter is capable of working with all receivers whose protocol works with the CC2500 RF chip. The module supports the Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT and many more protocols based on the firmware used. The module supports direct firmware update. A monochrome display with 128x64px resolution is used for clarity of the transmitter settings. The transmitter can control up to 16 channels. The transmitter uses open source OpenTX firmware. TX12 includes a JR shaft and can be expanded with other external transmitter modules such as TBS Crossfire or Tracer
Description:
- Dimensions: 170 * 159 * 108 mm
- Weight: 363g (without batteries)
- Supplied in mode 2 (change possible)
- Transmitting frequency: 2,400GHZ-2,480GHZV
- Transmitting Module:Internal Multiprotocol Module (CC2500)
- Transmitting power: maximum 20dbm
- Antenna gain: 2db
- Subscription current: 160mAh@8.4V
- Supply voltage: 6.6-8.4V DC (batteries not included - li-ion 18650 recommended)
- Signal Range:> 2km @ 20dBm
- Open source firmware: OpenTX (RC control)
- Number of channels: 16 max (depending on receiver)
- Display: 128x64 monochrome
- Control levers, gimbals: high quality potentiometers
- Upgrade method: Online USB/SD card offline support
- Protocols: Corona, Hitec, FrSky RX, FrSky X (D8, D16), FrSky X2, FrSky L, Graupner HoTT*, RadioLink, Redpine, Futaba S-FHSS, Skyartc.
Package contents:
- 1x Radiomaster TX12 transmitter
- 1x Transmitter Antenna

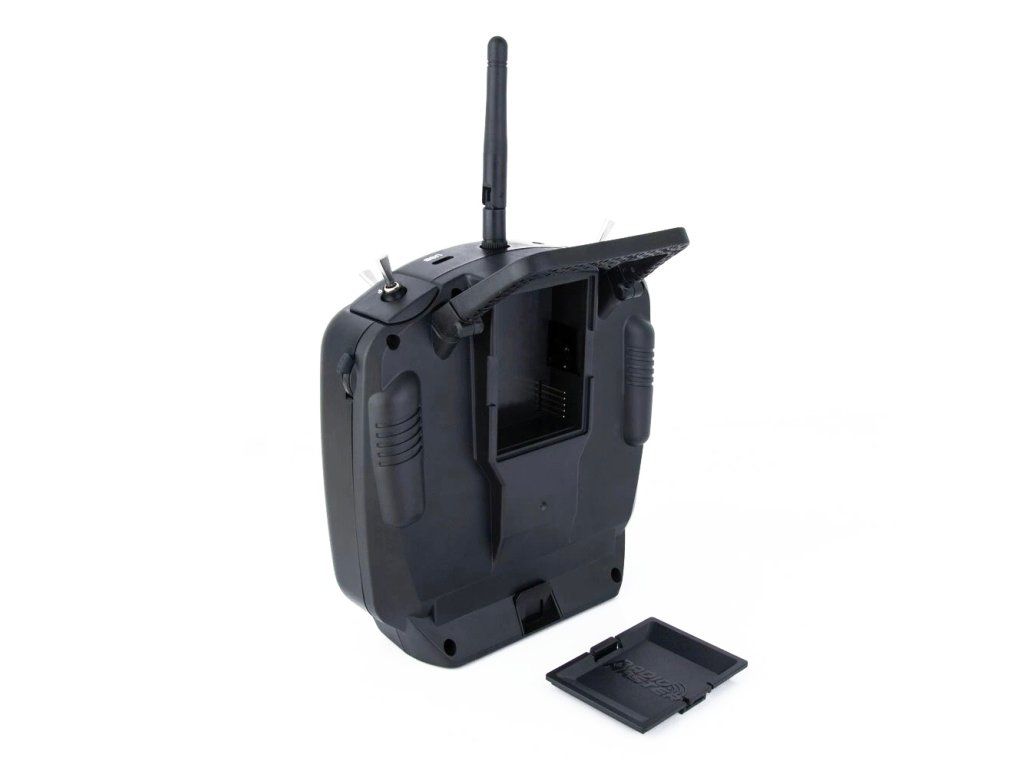

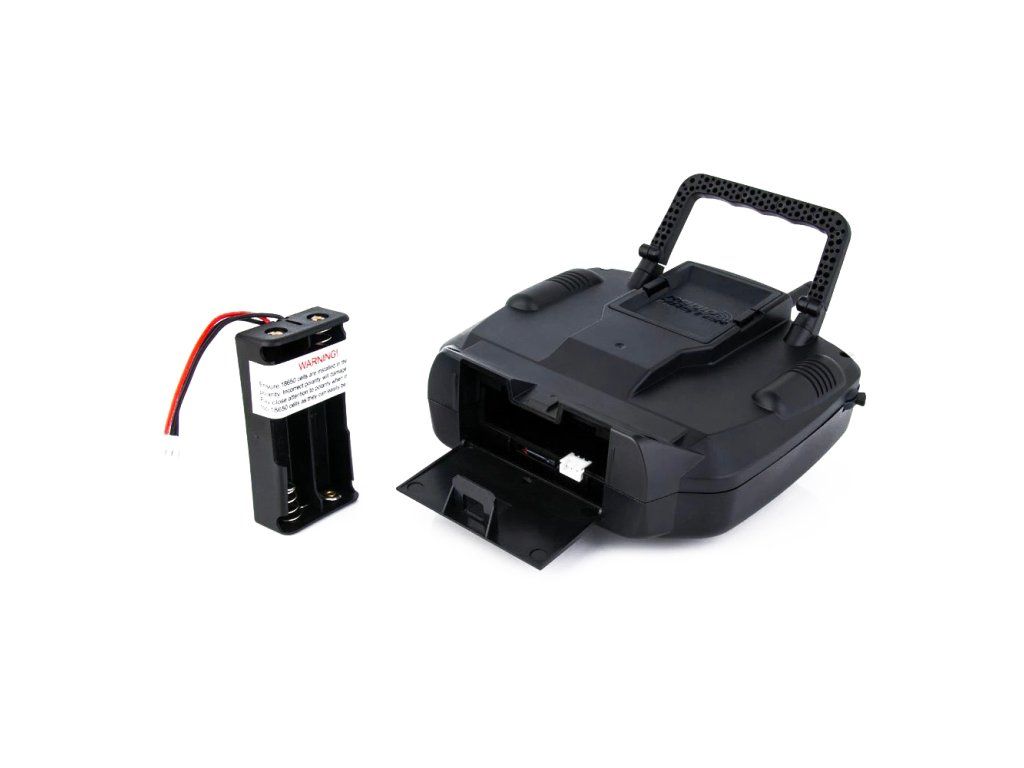

- 1x Cage (case) for 2pcs 18650 batteries
- 1x USB cable
- 1x Antenna terminal cover
