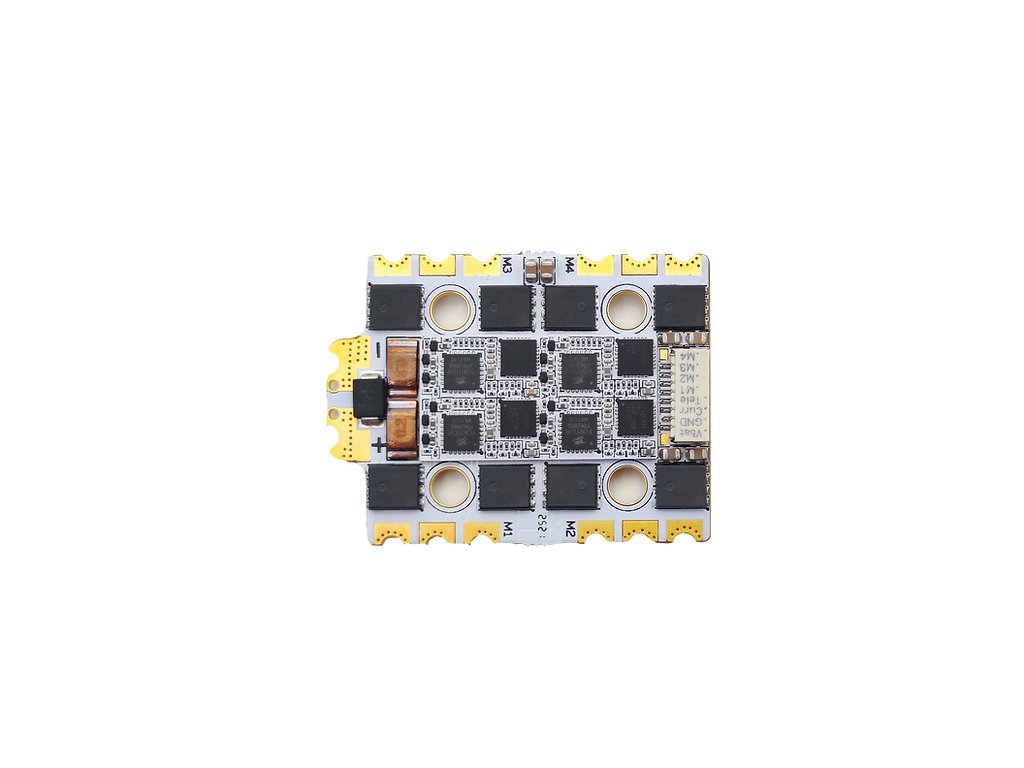

    HDZero Halo 4in1 70A ESC AM32

    967e02 d826bf2c586544df934e81668cede058~mv2
    €74,33 €61,43 excl. VAT
    In stock (>5 pcs)
    Delivery to:
    13.08.2025
    Delivery offer

    Detailed information

    Product detailed description

    The HDZero Halo 4in1 70A ESC AM32 is a high-end electronic speed controller designed for pilots who demand maximum performance and reliability. With HDZero’s advanced design and technology, it delivers exceptional durability, precise throttle response, and clean power for both racing and freestyle drones.

    Its split-board architecture separates the control and power stages for improved cooling and greater crash resistance. A copper bus bar and 3oz copper across eight PCB layers ensure rapid current flow, efficient heat dissipation, and minimal voltage drop during aggressive throttle changes.

    The ESC delivers a continuous current of 70 A per channel (for up to 30 seconds) and peak current of 100 A, handling even the most demanding flight conditions. Clean power delivery and voltage-spike isolation protect the flight controller electronics from brownouts or damage. A conformal coating shields against moisture, dust, and corrosion, while dual-sided solder pads allow flexible installation in various frame types.

    Key Features

    • High-performance 4-in-1 ESC from HDZero for racing and freestyle drones

    • Split-board design with copper bus bar for enhanced throttle response

    • 8-layer PCB with 3oz copper for superior thermal and current handling

    • 24 MOSFETs (6 per motor)

    • Continuous 70 A / peak 100 A (3 s)

    • Clean power delivery with minimal voltage spikes

    • Supports 3S–8S batteries (9–40 V)

    • Telemetry, Dshot 150–2400, MultiShot, OneShot support

    • Firmware: AM32

    • Conformal coating for moisture and dust protection

    • Dual-sided solder pads for flexible installation

    • 20×20 mm mounting pattern, dimensions 33×43 mm, weight 13.4 g

    Specifications

    • Model: HDZero Halo 4in1 70A ESC

    • MCU: AT32F421 (120 MHz)

    • Firmware: AM32 2.18 (Target: HDZ_ESC_1R0_F421)

    • Input voltage: 9–40 V DC (3S–8S)

    • Output voltage: VBAT for FC power

    • Max current: 70 A × 4 (continuous) / 100 A × 4 (peak)

    • Current sensor: scale 170, offset 0

    • Dimensions: 33×43 mm

    • Mounting: 20×20 mm, Φ4 mm holes for M3 rubber grommets

    • Weight: 13.4 g
