HDZero AIO5 Whoop Flight Controller - VTX - ESC - ELRS 2.4GHz RX
Related products
Product detailed description

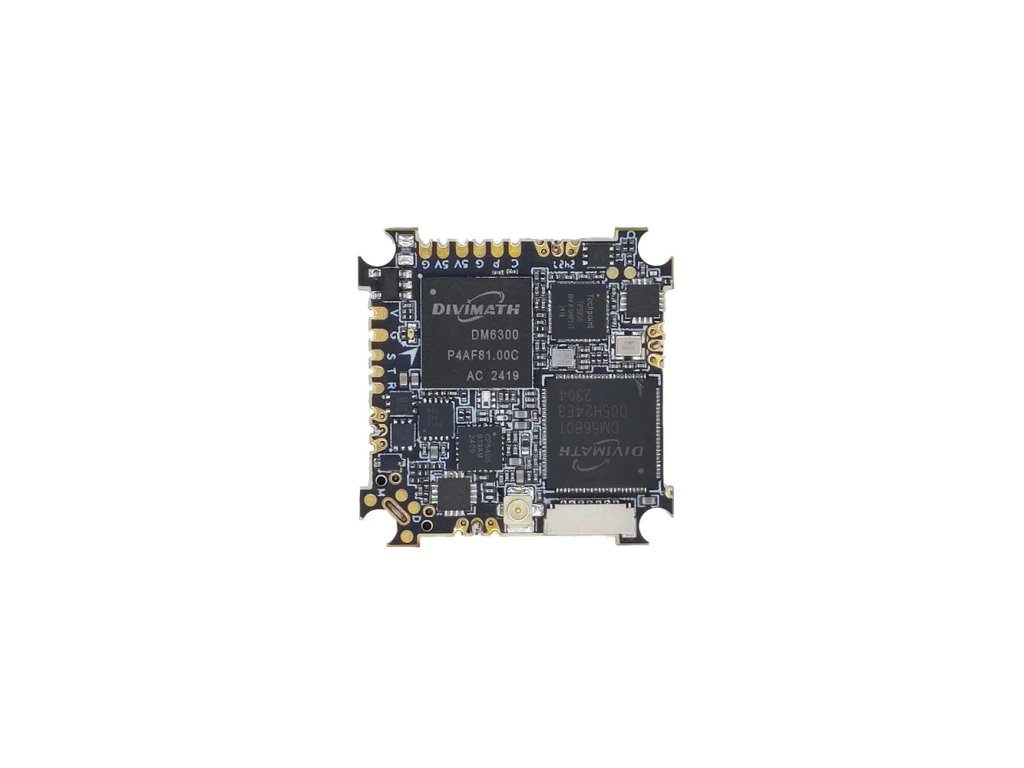

The HDZero AIO5 is the world's first digital video AIO that enables bind-and-fly whoops of 65mm with a weight of less than 19.5g. The AIO5 integrates FC F4, HDZero 5.8 GHz digital video transmitter, 2.4 GHz ExpressLRS 3.0 SPI receiver, 4-in-1 ESC with DSHOT protocol support, and 5V/1A BEC. It is ideal for racing and freestyle with tiny whoopas.
Specs:
- MCU: STM32F411 (100 MHz, 512K Flash).
- Gyro: BMI270
- Integrated voltage and current meters
- Built-in 4-in-1 ESC: BLHeli_S, 5A (each channel), maximum 6A for 3 seconds
- MCU for ESC: EFM8BB21
- HV current: 5A continuous, 6A peak (3 seconds)
- Factory firmware: O_H_5_48_V0.19.2.HEX
- Dshot600 support
- Built-in 5.8G HDZero VTX
- RF output: 25mW/200mW
- Supported channels: R1-R8, F2/F4, L1-L8
- Connector: UFL (with ultra-lightweight linear VTX antenna)
- Built-in SPI ExpressLRS 2.4GHz receiver
- Packet Rate Options: 25Hz/50Hz/150Hz/250Hz/500Hz
- Telemetry output: <12 dBm
- Built-in 5V 1A BEC
- Flight controller firmware: CRAZYBEEF4SX1280
- Power supply: 1S battery (2.5V - 4.35V)
- Compatibility: Fully compatible with popular whoop frames
- Board dimensions: 28.5x28.5mm, mounting holes 25.5x25.5mm
- Weight: 5.7 g (without motor connectors), 6.3 g (with motor connectors)

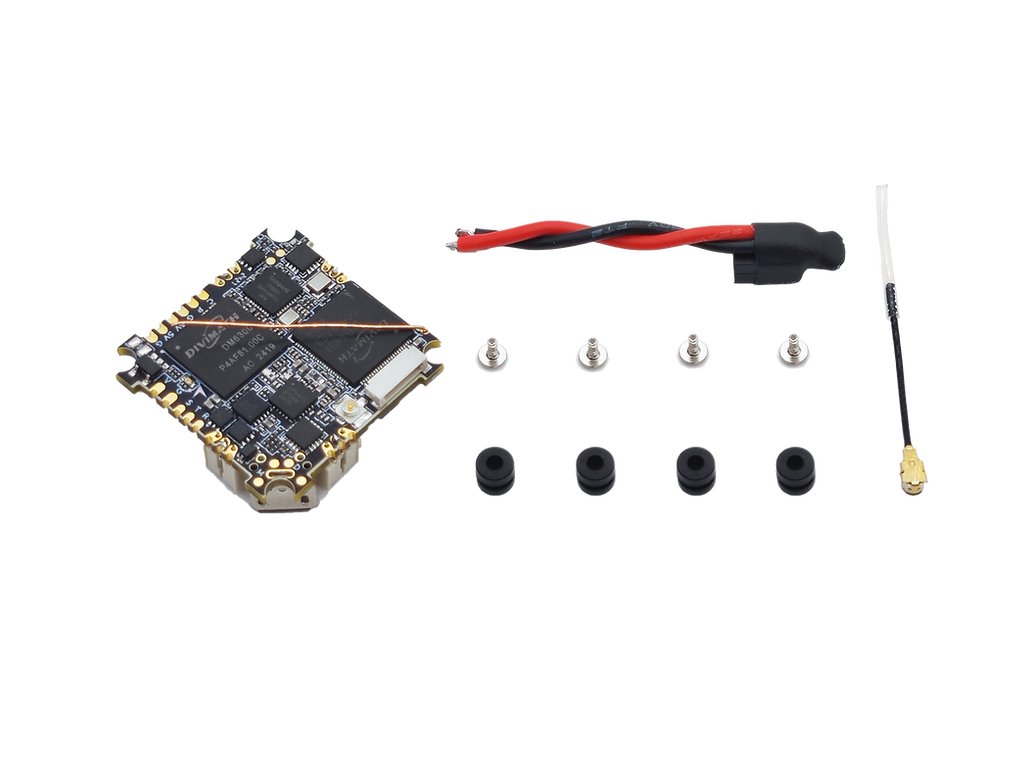

Package contents:
- 1x HDZero AIO5 board
- 1x Power cable with A30 connector
- 4x screws
- 4x rubber washers
- 1x ultra-lightweight linear VTX antenna
Additional parameters
| Category: | Units |
|---|---|
| Frekvence: | 2.4GHz |
| Montáž: | 25.5x25.5mm |
| Protokol: | ExpressLRS |
| Typ ESC: | AIO |
