Product detailed description

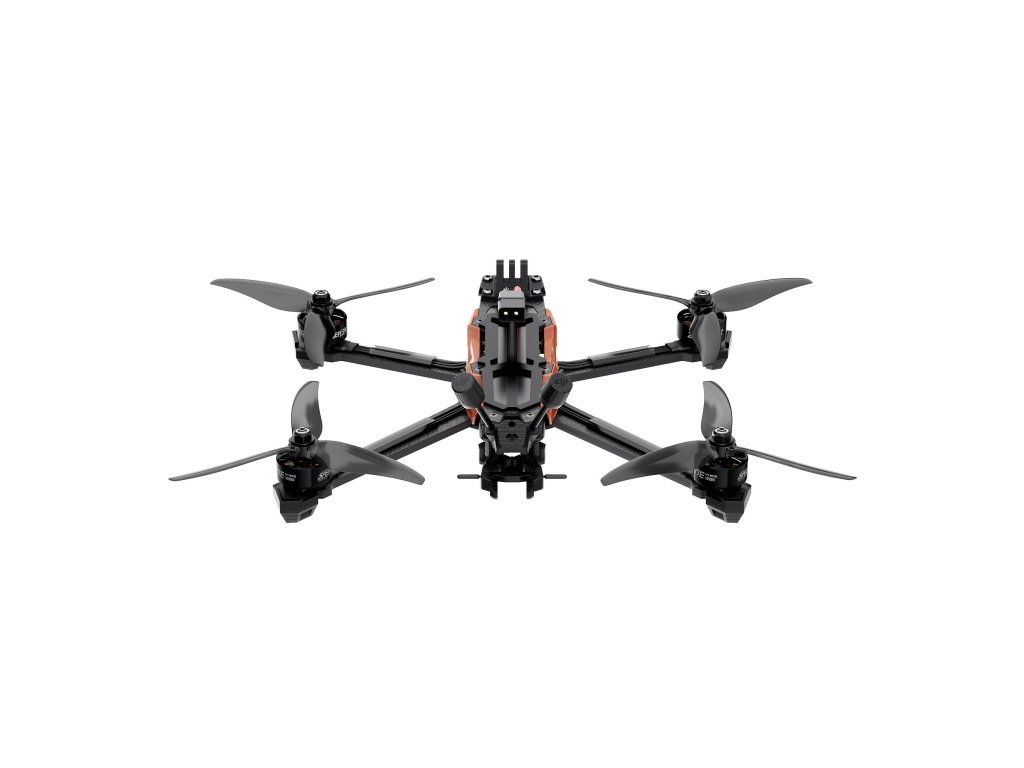

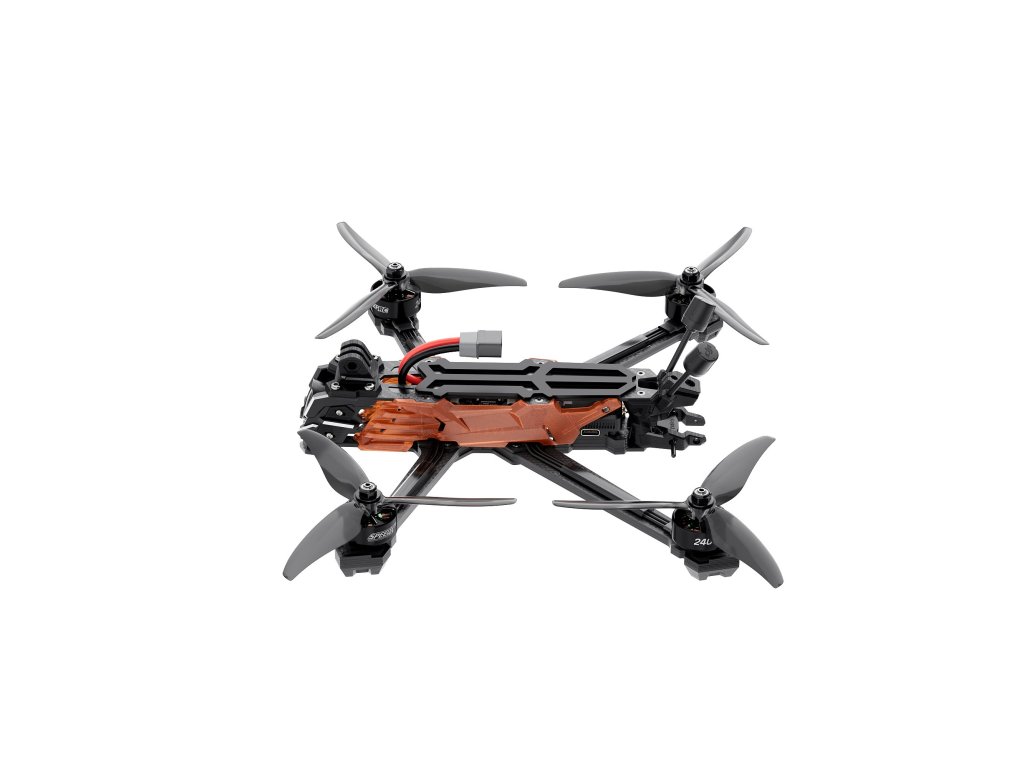

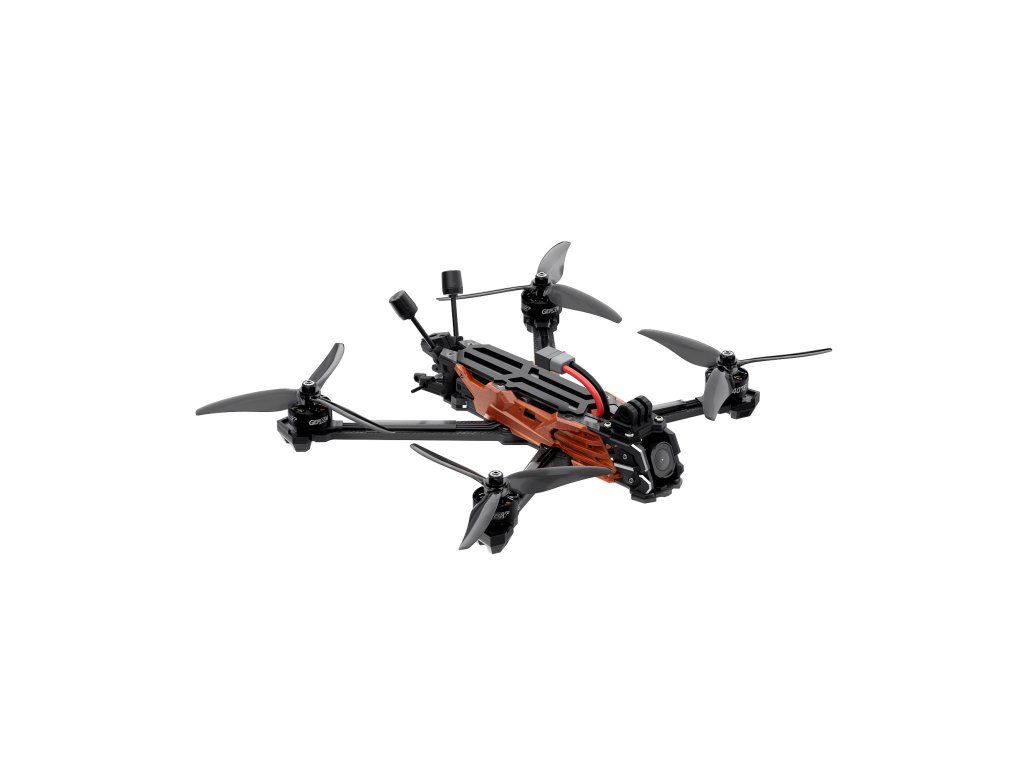

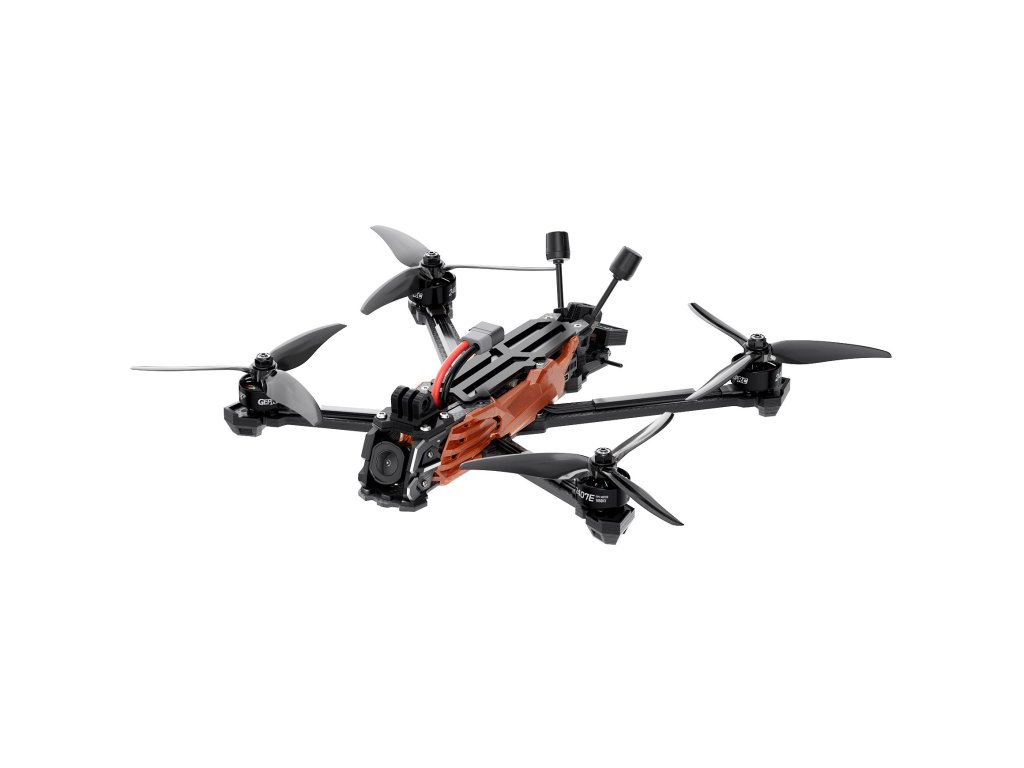

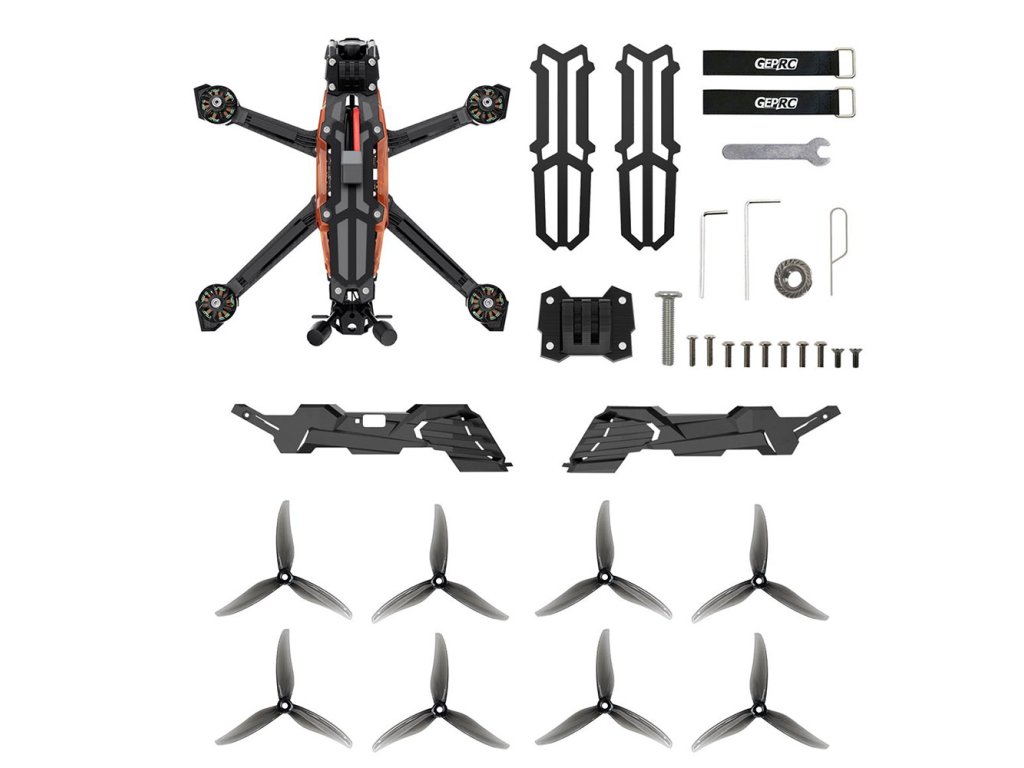

The GEPRC Vapor-D6 is a powerful 6" freestyle drone with DJI O4 Pro digital image transmission. Thanks to its larger 6" propellers and more powerful motors, the drone is suitable for flying with a larger and heavier battery or with an HD camera like GoPro.

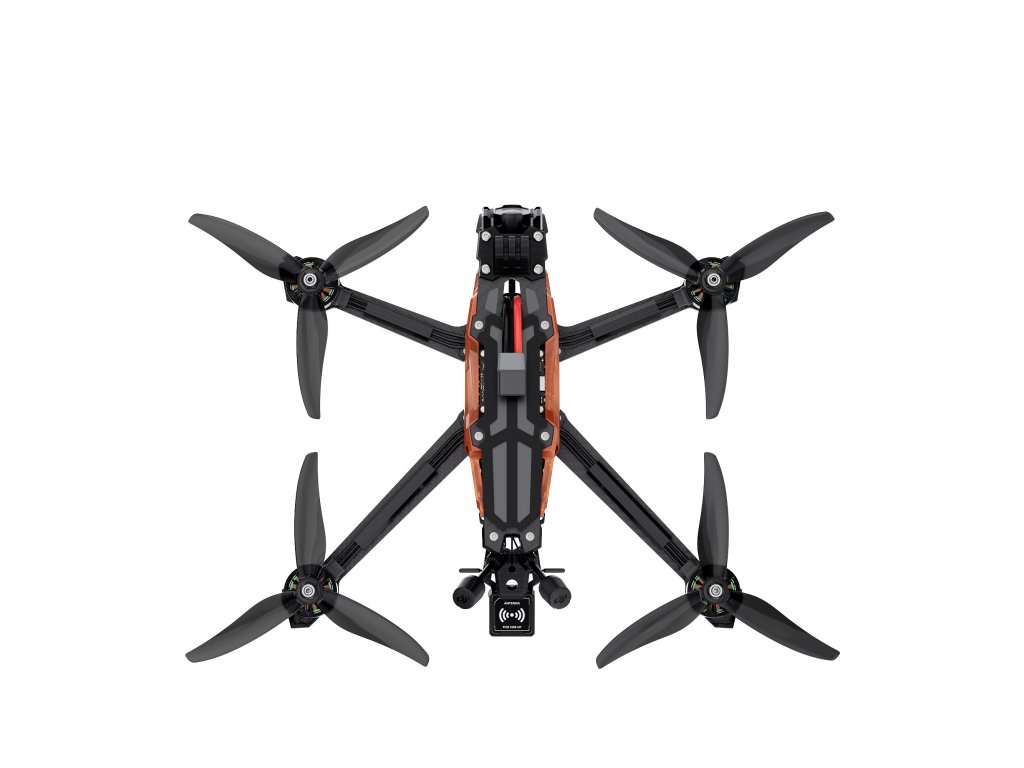

The Vapor D6 uses a Deadcat configuration, where the front arms are shifted further back and to the sides. This ensures that disturbing propeller edges are not visible in the camera view, which is especially important if you are using the DJI O4 camera for recording.

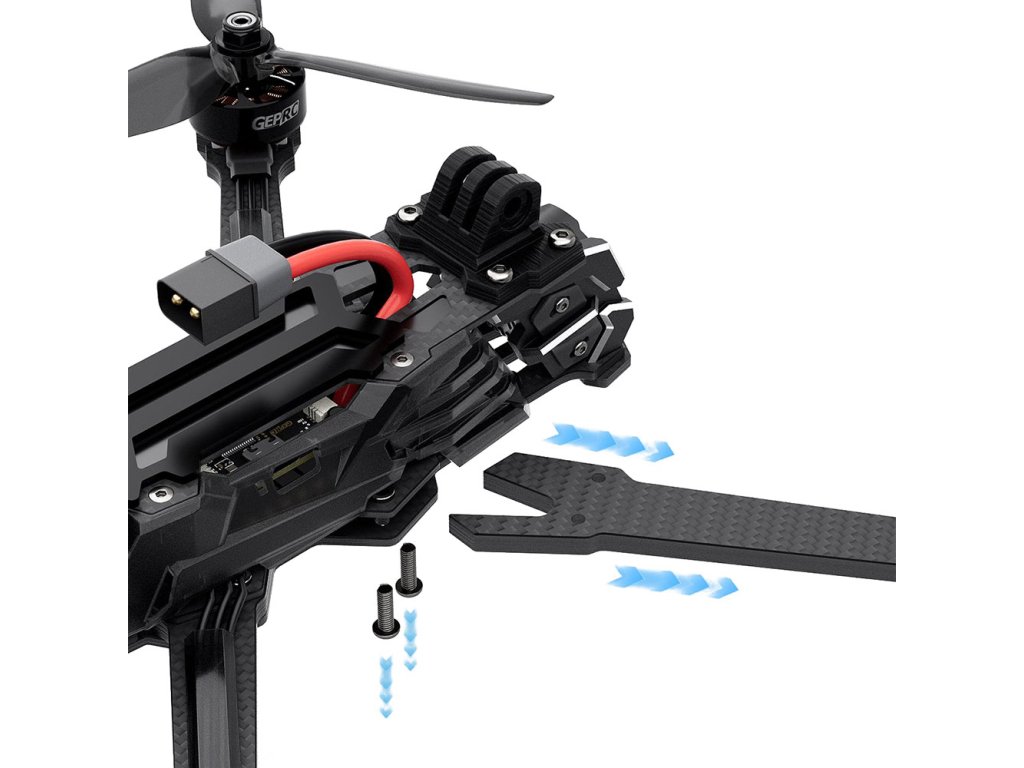

The frame uses 5mm thick arms. The arms are attached with two screws, making their replacement very easy in case of damage. The FPV camera is protected by aluminum side plates. The camera mounting itself is handled via a rubber insert that helps to absorb vibrations.

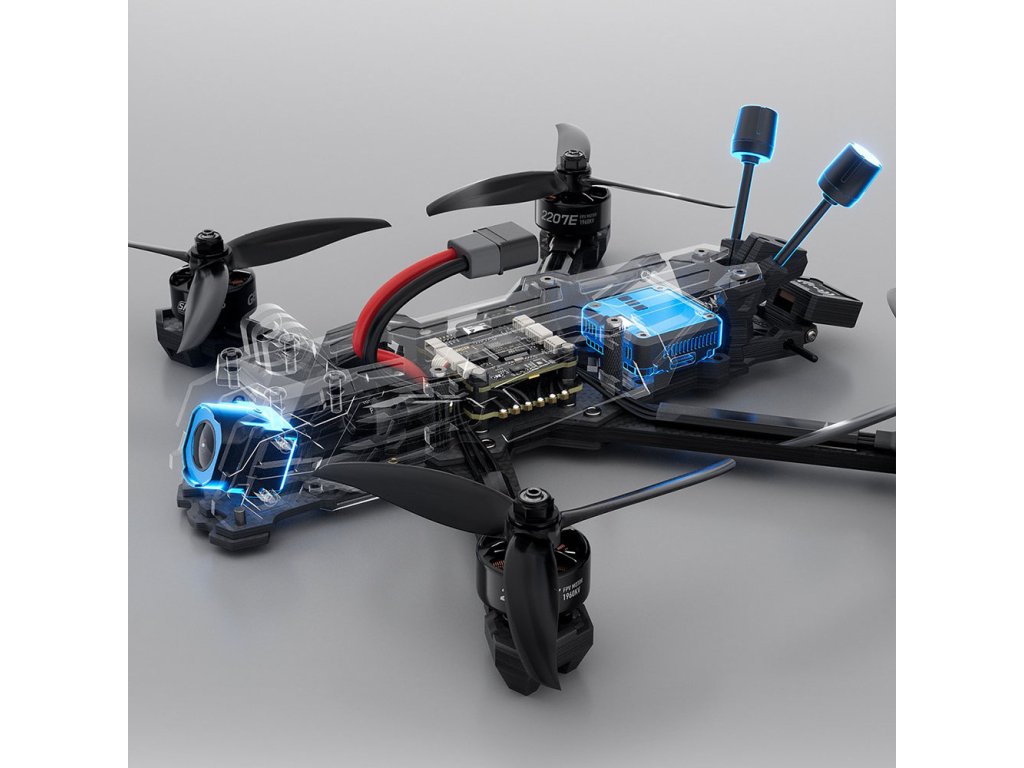

The Vapor-D6 is equipped with the GEP-F722-HD V2 flight controller featuring an F722 processor, an ICM42688-P gyro, a BMP280 barometer for altitude measurement, and 16MB of memory for blackbox. The board is complemented by 60A ESCs with BlHeli_S firmware. Propulsion is provided by GEPRC SpeedX2 2407E 1750Kv motors in combination with HQProp 6x3.5x3 propellers. Video transmission is handled by the aforementioned DJI O4 Pro unit. The drone is equipped with an ELRS receiver with one antenna on the 2.4GHz frequency.
Recommended batteries are 6S with a capacity of 1500-2200mAh.
Key Features
-
Diagonal motor distance: 274.6mm
-
Recommended batteries: 1500-2200mAh 6S
-
FPV transmission: DJI O4 Pro
-
Motors: GEPRC SPEEDX2 2407E 1750Kv
-
Stack: GEPRC F722-HD V2 + TAKER H60_BLS
-
Gyro: ICM42688-P
-
Integrated barometer
-
Frame: GEPRC Vapor-D6
-
Receiver: GEPRC ELRS Nano 2.4GHz
-
Propellers: HQProp 6x3.5x3
-
Weight: approx. 465g
