ELRS Nano Receiver
Related products
Product detailed description
Upgrade FW only via UART/BETAFLIGHT (using WiFi may cause receiver bricking)
Specifications

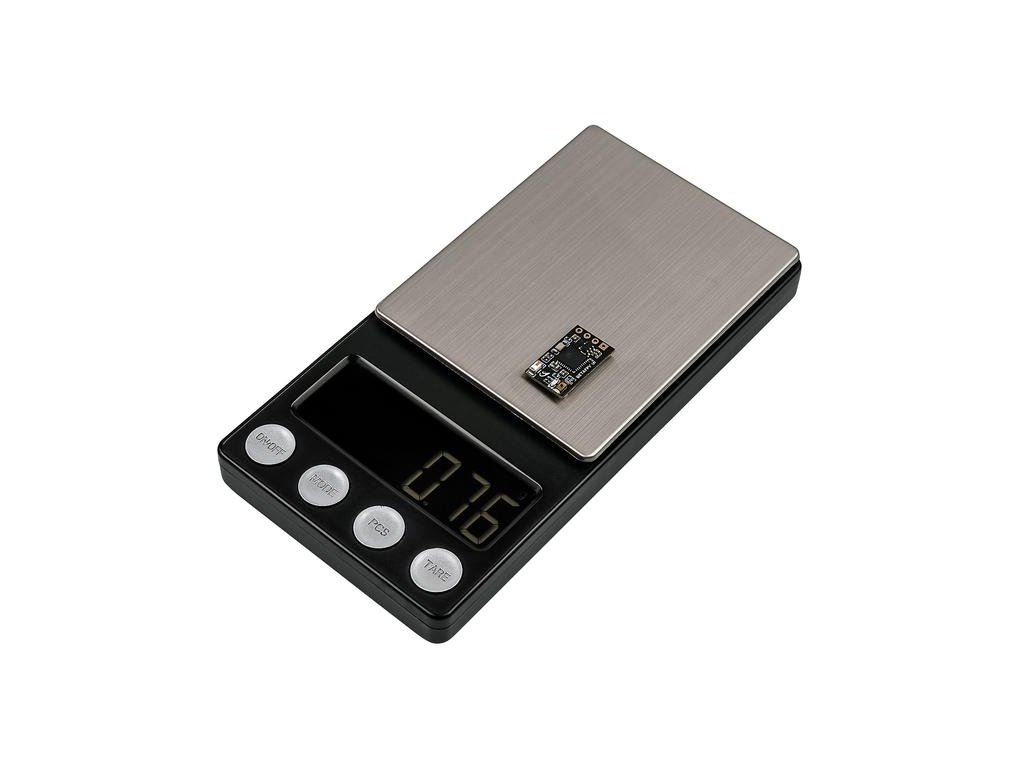

- Weight: 0.7 g (receiver only)
- Size: 12 mm*19 mm
- Telemetry power: 20 dBm
- Frequency Band: 2.4GHz ISM
- Input Voltage: 5V
- Antenna connector: IPEX MHF

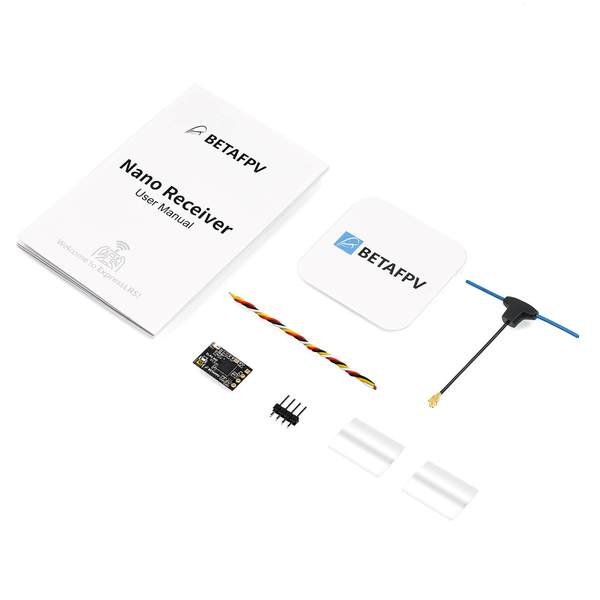

Package Contents:
- 1* BETAFPV ELRS Nano Receiver
- 1 * BETAFPV T antenna
- 2 * Replacement shrink wrap
- 4 * 30awg silicone connecting wires (1 black, 1 red, 1 white, 1 yellow)
- 1 * 1x4 header connector
- 1*Nano Receiver User Manual
