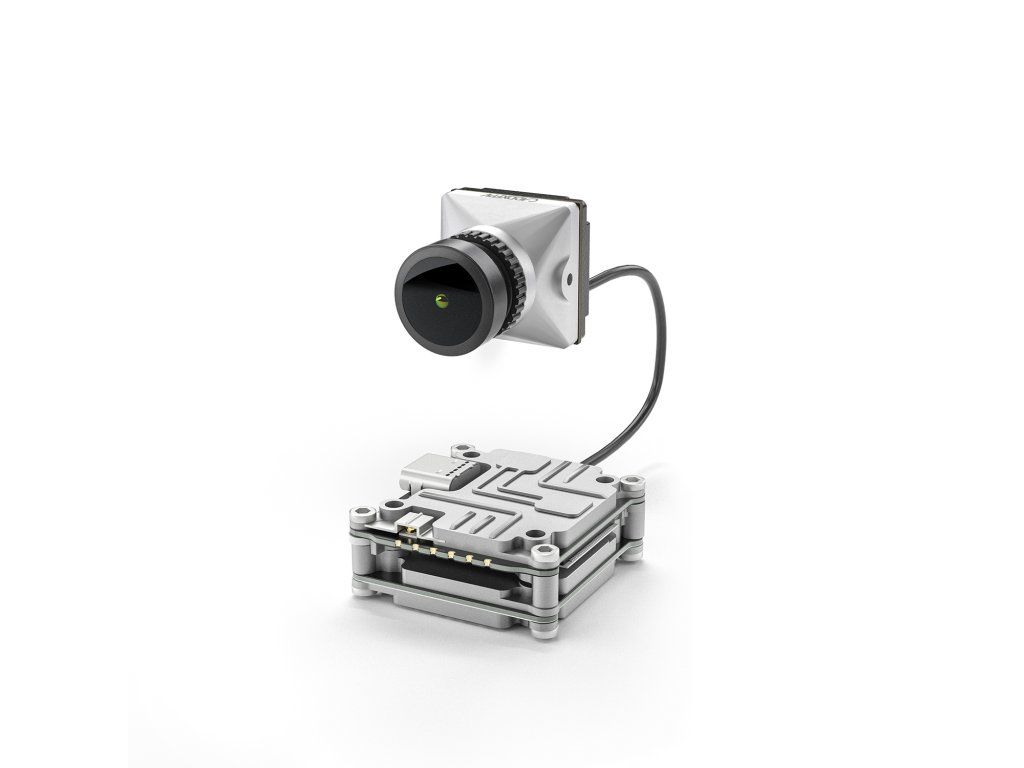

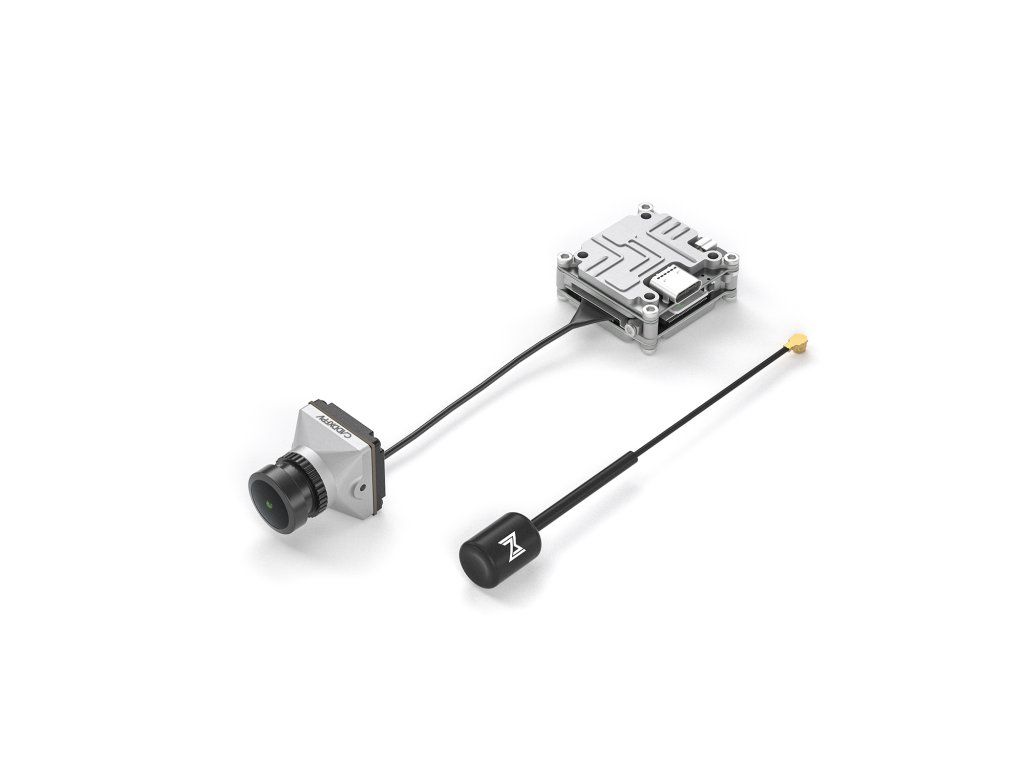

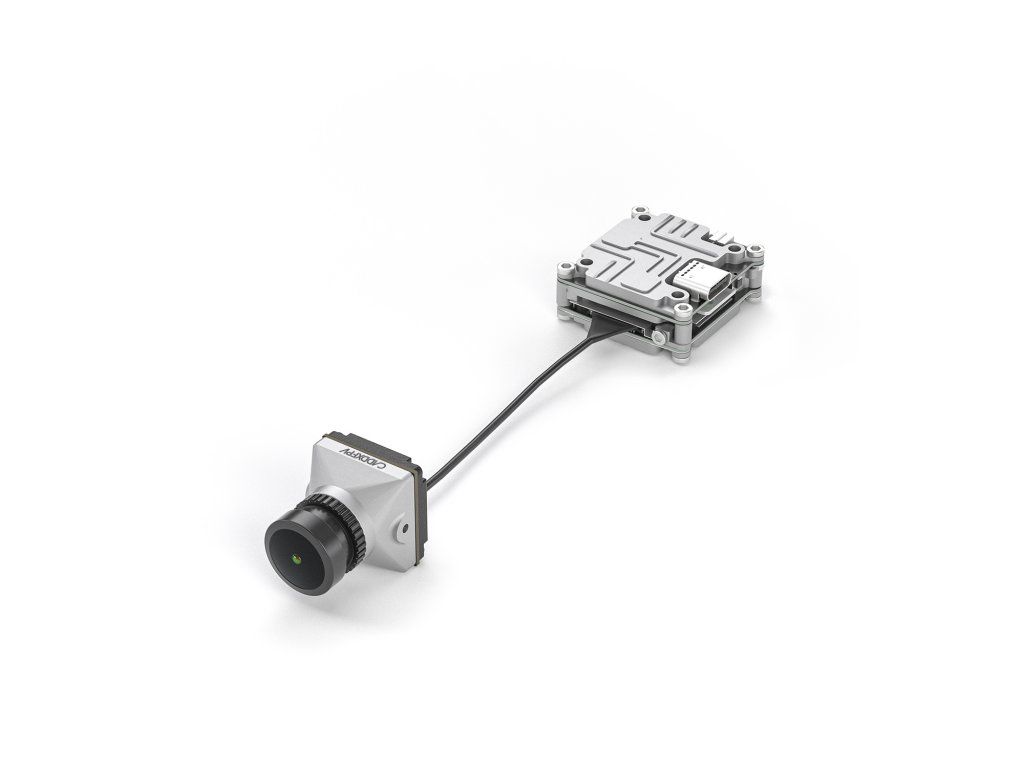

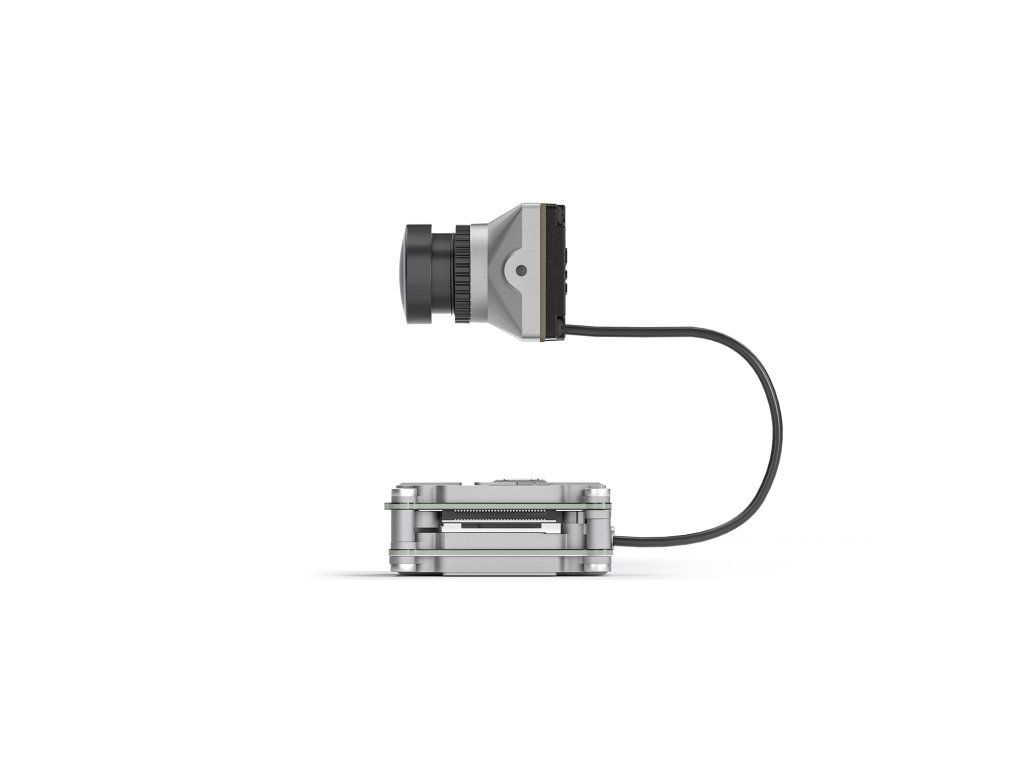

Caddx Polar Vista kit
Related products
Product detailed description
The Caddx Polar Vista kit is a small flight unit compatible with DJI's HD FPV system including the new Caddx camera. Thanks to the 20x20 mounting holes, the unit can be mounted directly on the stack. Unlike the DJI flight unit, the Caddx Vista uses only one antenna. Caddx Vista is compatible with existing DJI systems (radio and DJI goggles V1 and V2).
Parameters:

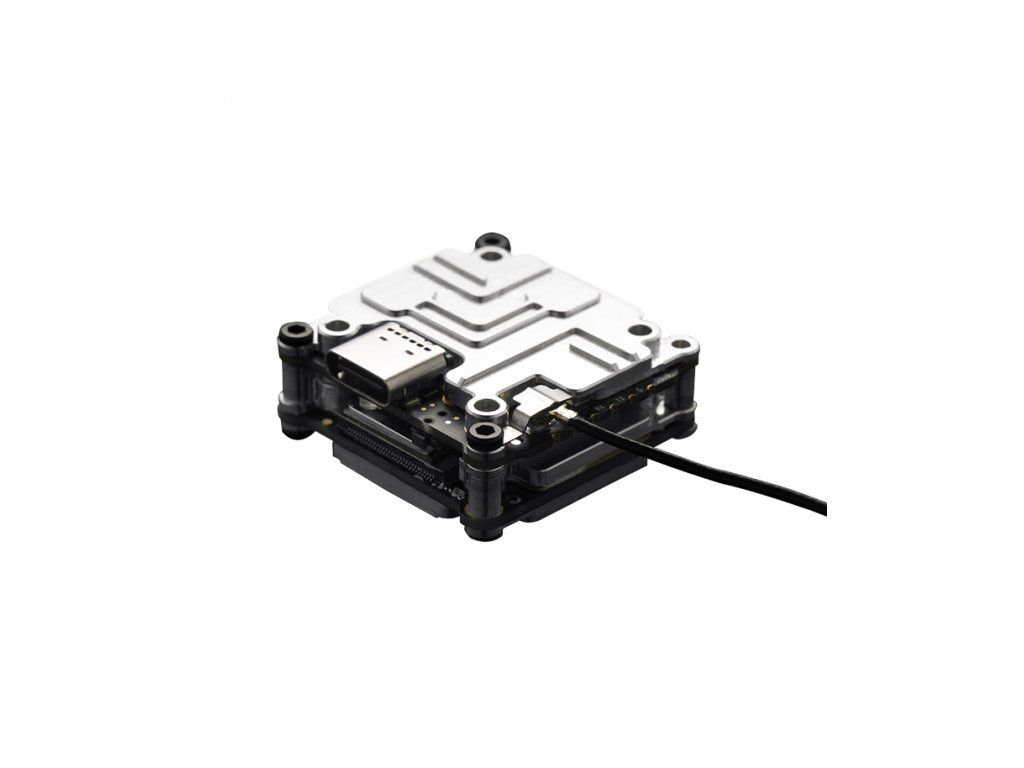

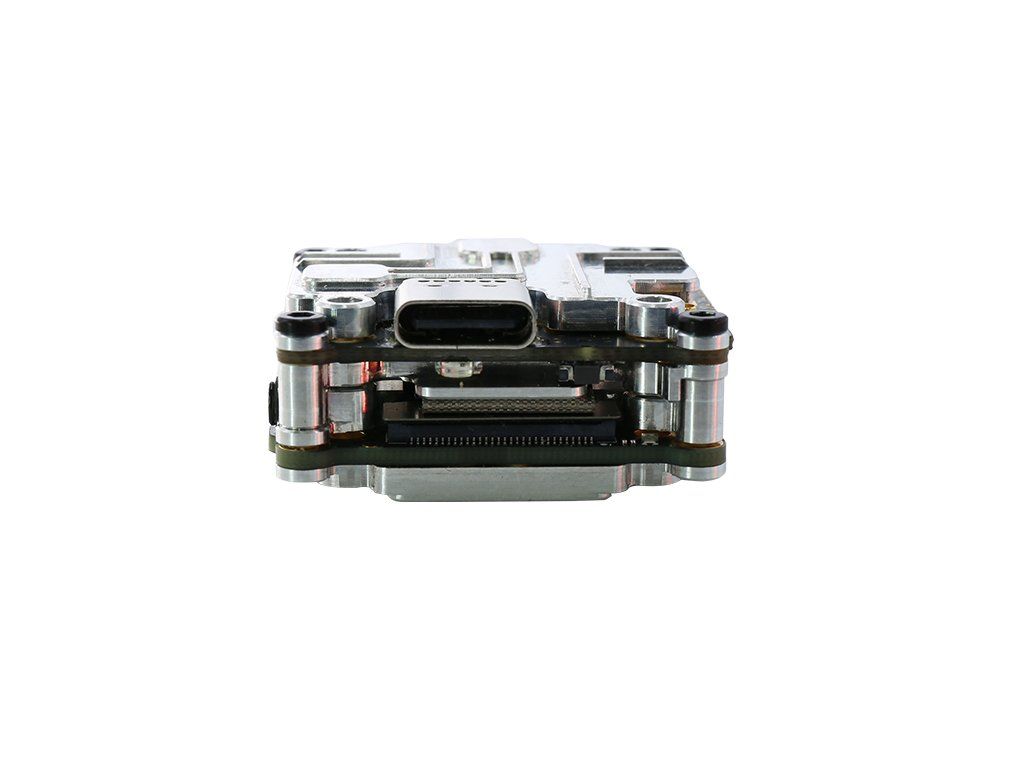

Vista unit:
- 7.4-26.4V input voltage.
- Weight of unit including camera: 28g
- Vista size: 30x29x13mm
- Camera size: 19x19x24mm
- Frequency Band: 5.8Ghz
- Min. Low Latency Mode (720p 120fps): 21-28ms
- Input Power: 7.4-26.4v
Polar Camera
- Sensor 1/1.8" inch 2.3 megapixel Starlight sensor
- LENS F/1.6 and 8 Mega
- FOV 162° (D); 138° (H); 75° (V)
- Min. Illumination 0.00003Lux
- Min. Latency 720p/60fps <32ms
- Aspect Ratio 16:9
- Dimensions 24mm*19mm*19mm
- Color Brown/Silver
- Weight 9g

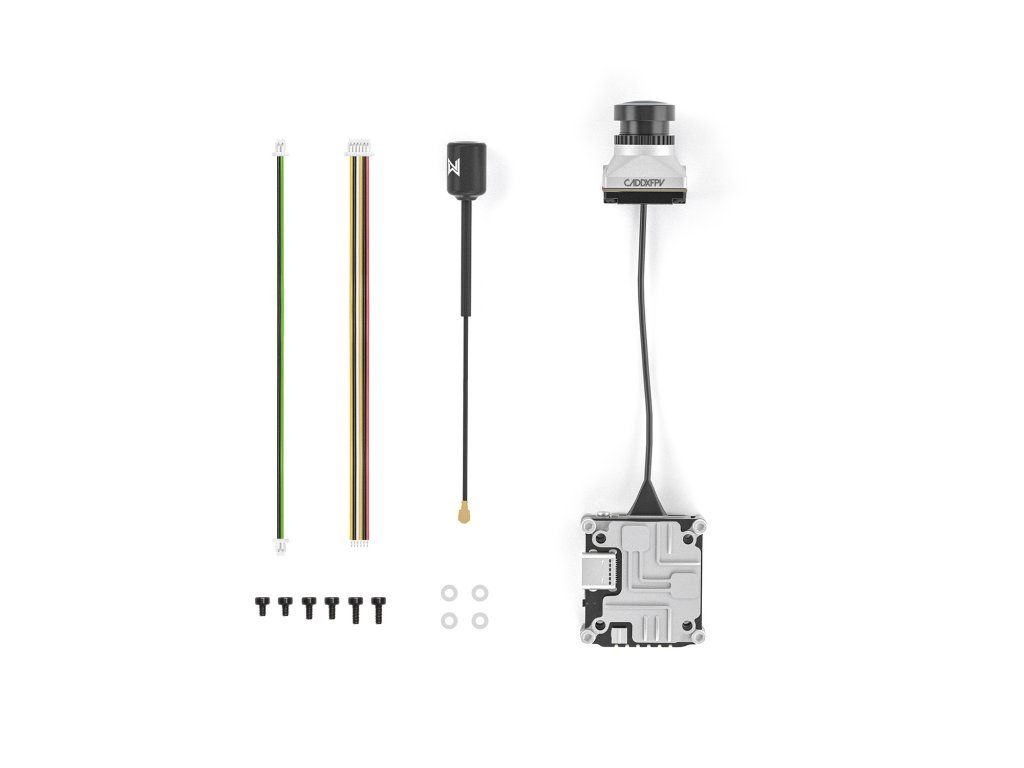

Contents:
- Vista HD VTX
- Caddx Polar camera
- Coaxial cable
- Antenna
