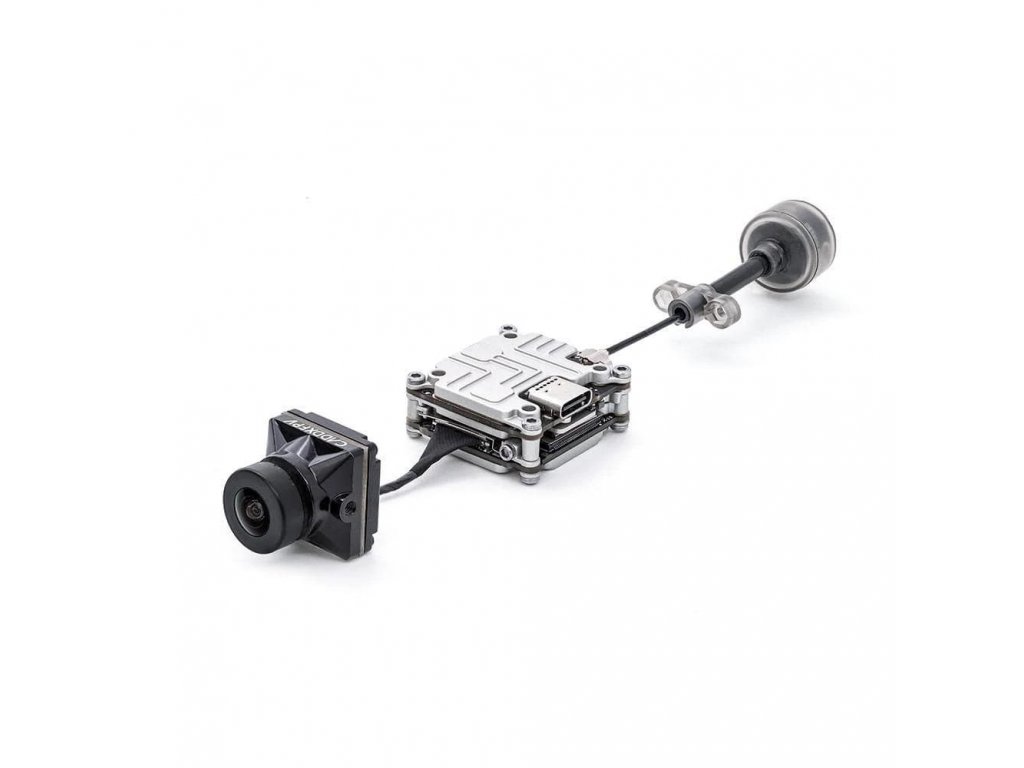

Caddx Nebula PRO Vista Kit

Product detailed description

The Caddx Nebula Pro Vista Kit 720p / 120fps HD Digital FPV System is the next generation of the Vista system with the new and improved Nebula Pro camera.

The Caddx Nebula Pro digital FPV camera kit is another advanced Caddx video transmission module and fully authorized by DJI to support 5.8 GHz digital video signal and 720p 120fps video transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and can be used with DJI FPV goggles to provide high-resolution digital video and a transmission range of up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each pilot has their own channel, which helps reduce mutual interference.

Users can wirelessly connect their Vista Kit to the DJI FPV Remote and DJI FPV Goggles V1 and V2 without having to purchase additional receivers.

Specifications:

• Vista Kit (Nebula Pro)

• Weight: Including Camera: 27 g / Antenna: 2.5 g

• Vista kit dimensions: 30x29x13mm

• Camera Dimensions: 19x19x20mm

• Coaxial cable: 120mm

• Operating Frequency: 5.725-5.850GHz

• Transmitter Power (EIRP): FCC/SRRC/MIC: <30 dBm, CE: <14 dBm

• Low latency 720p 120fps: 12-28ms

• High quality mode: 720p 60fps: 30-40ms

• Max. FCC/SRRC: 4 km, CE: 0.7 km

• I/O Interface: USB-C, IPEX, 3-in-1 port

• Supported flight control system: F3, F4, F7

• Operating temperature range: 0°~40°F (32° to 104°F)

• Input Power: 7.4-26.4V

• Power: 25mW / 200mW / 500mW / 700mW

• Sensor: 1/3'' CMOS

• Lens: 2.1mm, f/2.1

• FOV: 150°[D], 122°[H], 93°[E]

Package Contents:

• 1 x Caddx Nebula Pro Vista Kit 720p/120fps HD digital FPV system with low latency
