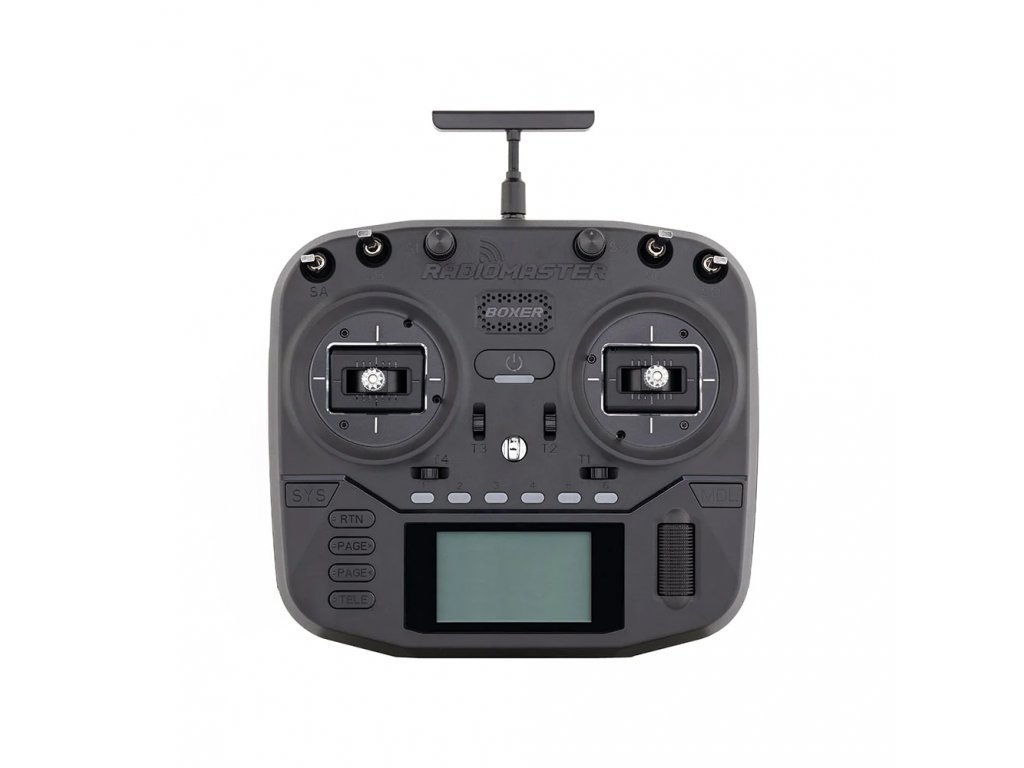

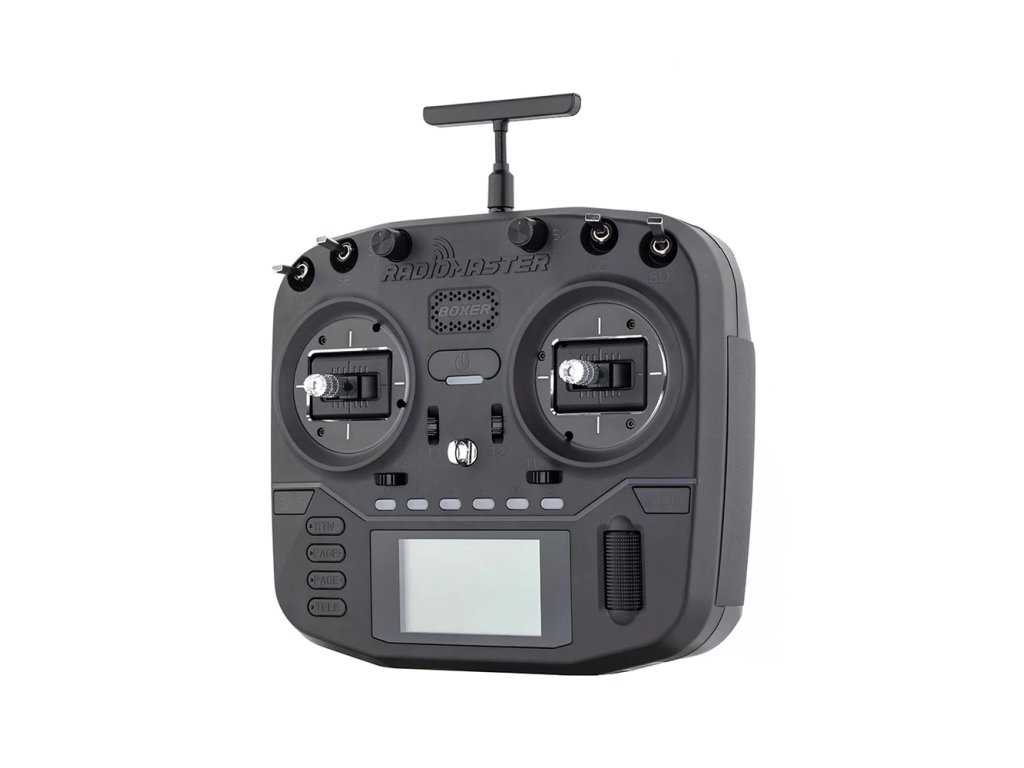

Boxer Radio 4in1 multiprotocol

Product detailed description

The perfect combination of size and ergonomics makes the BOXER the ideal choice for pilots on the go. Featuring full-size gimbals for precise control and an intuitive button layout, the BOXER RC Radio Master gives you a compact radio without compromising on convenience and function.

• The version offered is a 4in1 multiprotocol
• Includes a powerful STM32VGT6 processor with 1 MB RAM
• Pre-installed EdgeTX firmware
• 4in1 version up to 20dBm RF output
• QC3.0 2.0A MAX fast charging support
• Compact design with excellent ergonomics
• New low profile SE switch and SF momentary switch
• Large battery compartment - Space for up to 2S 6200mAh battery, last up to 20 hours (batteries not included)
• Full size V4.0 gimbals with Hall effect as standard
• JR module compartment as standard
• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access
• Adjustable and removable T-shaped antenna

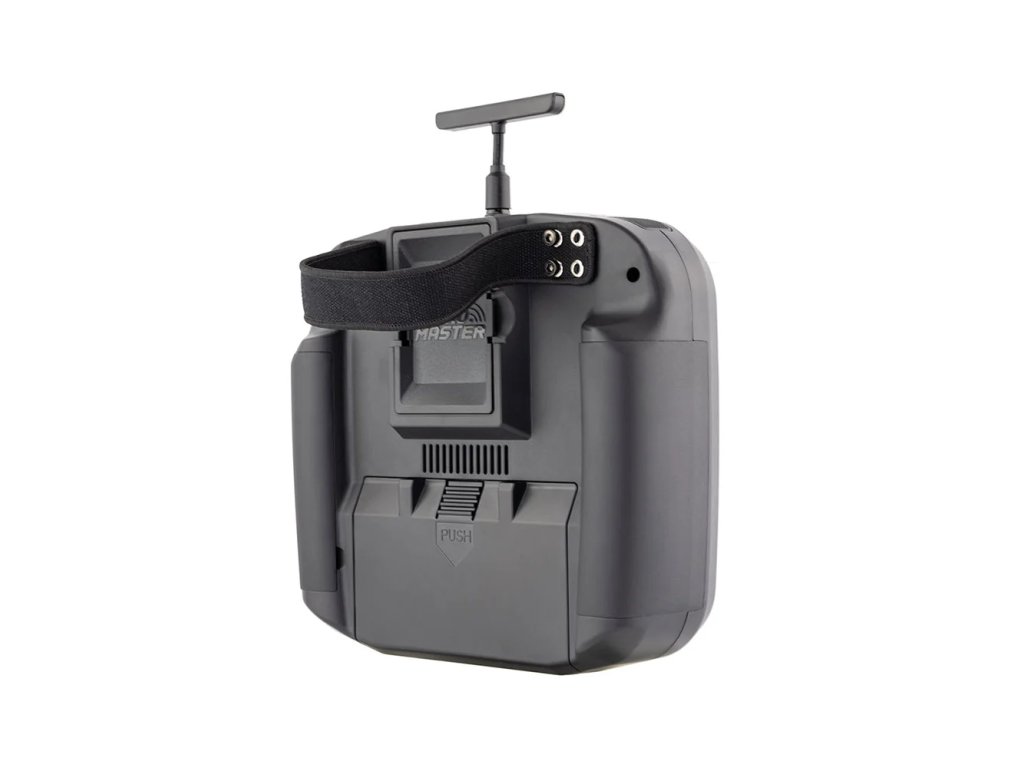

• Fabric carrying handle - takes up no space in a backpack
• Interchangeable, ergonomic handles
• Redesigned SD card slot with embedded SD card
• External module power slots in battery cover
• RadioMaster carrying case and gimbal protector included as standard

Specifications

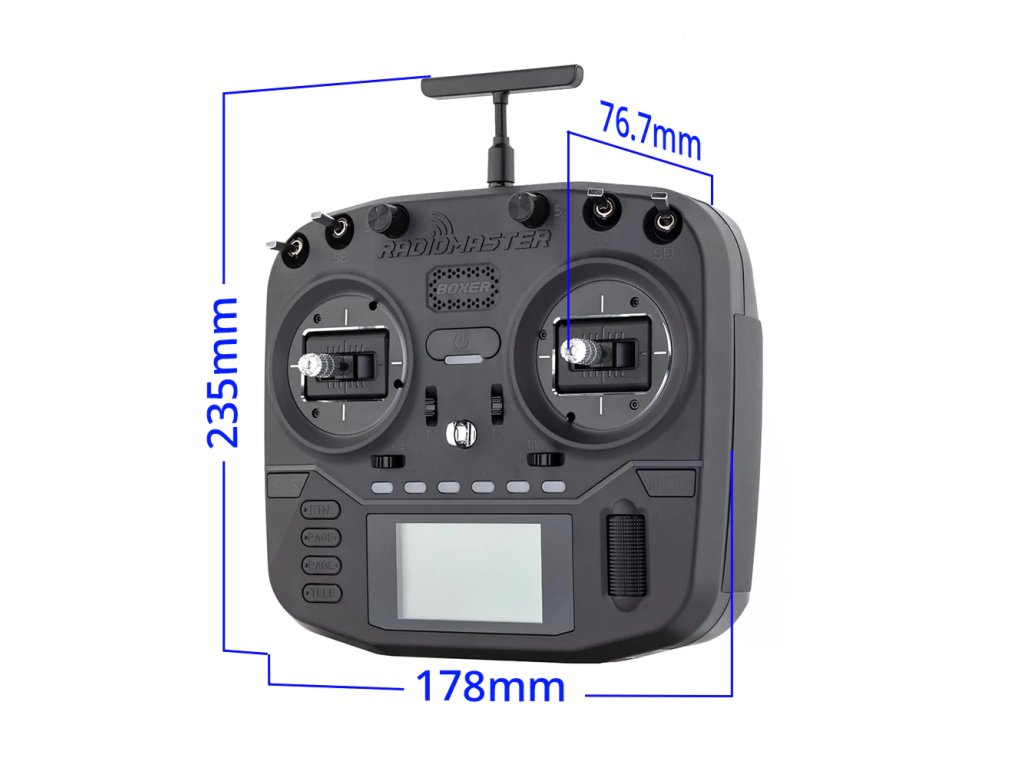

• Size: 235*178*77mm
• Weight: 532.5g
• Frequency: 2.400GHz-2.480GHz
• Internal RF: 4 in 1 multiprotocol
• 4IN1 transmit power: Max 20dBm
• Voltage range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (transmitter) / Multi-Module (RF module)
• Channels: Max 16 channels (depends on receiver)
• Battery: 7.4V 2-cell lithium polymer / two 3.7V 18650 lithium-ion cells (batteries not included)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision 4.0 Hall gimbals
• External Module: compatible with JR/FrSKY/Crossfire
• Upgrade Method: USB/SD card and EdgeTX Companion PC software

Package includes

• 1* Radio BOXER
• 1 * Case
• 1 * T antenna
• 1 * USB-C cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen key
• 2 * M4*4 screws
• 4 * Low tension springs
• 1 * 18650 battery compartment
• 1* Stickers
• 1* Manual Instructions
