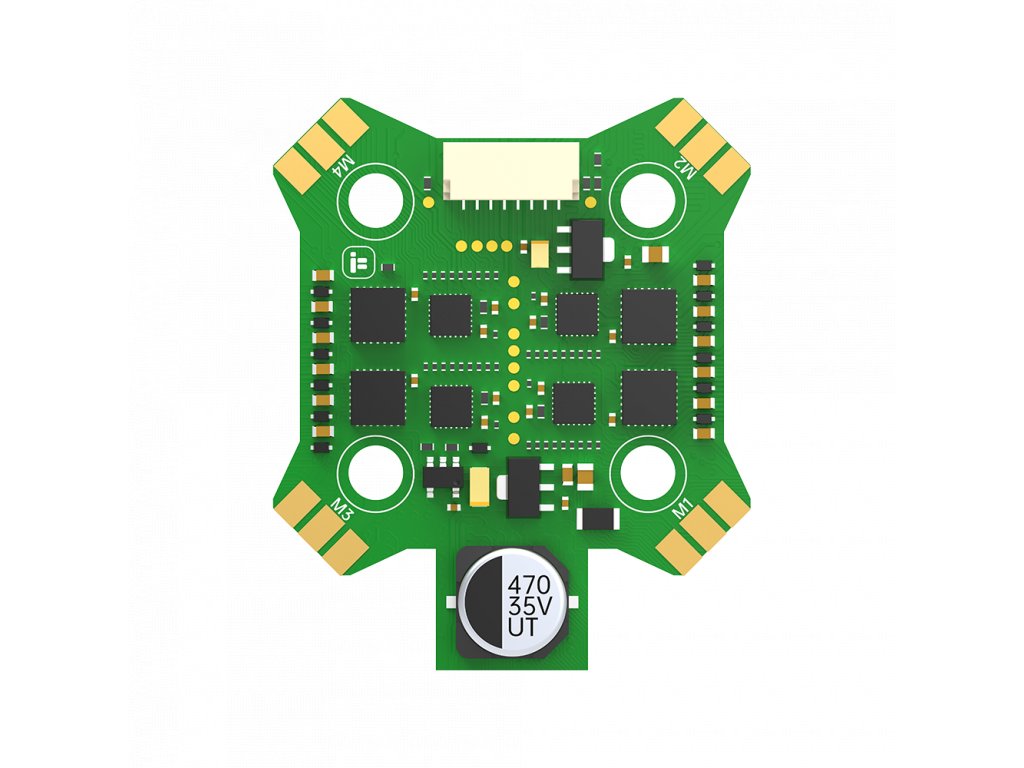

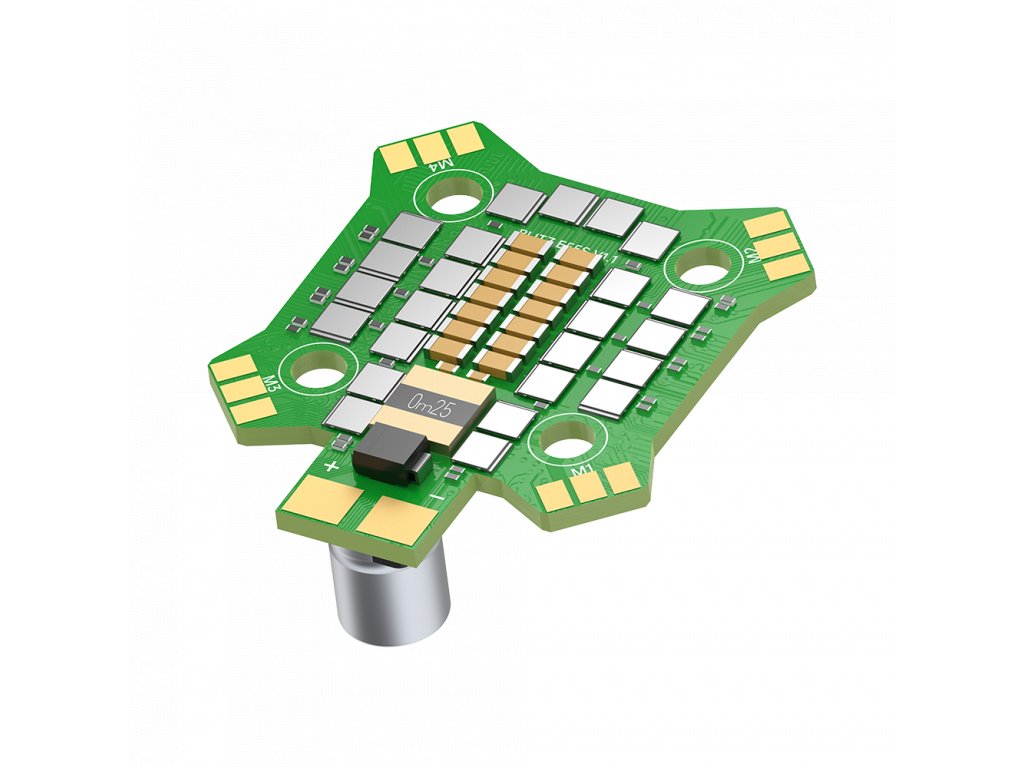

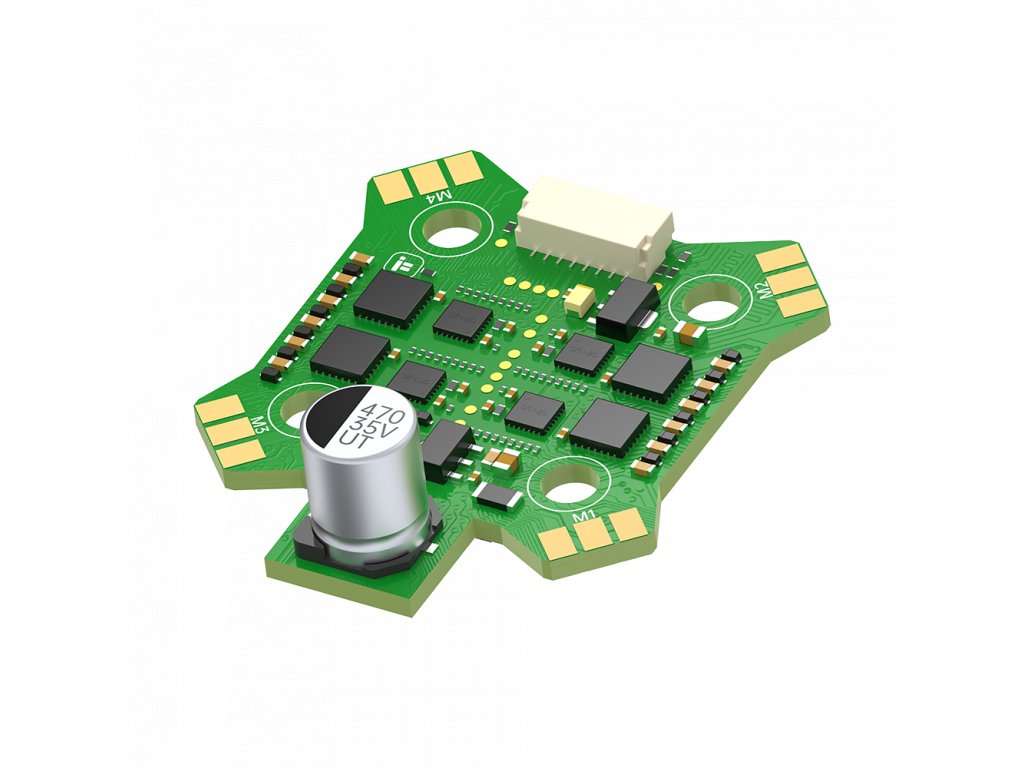

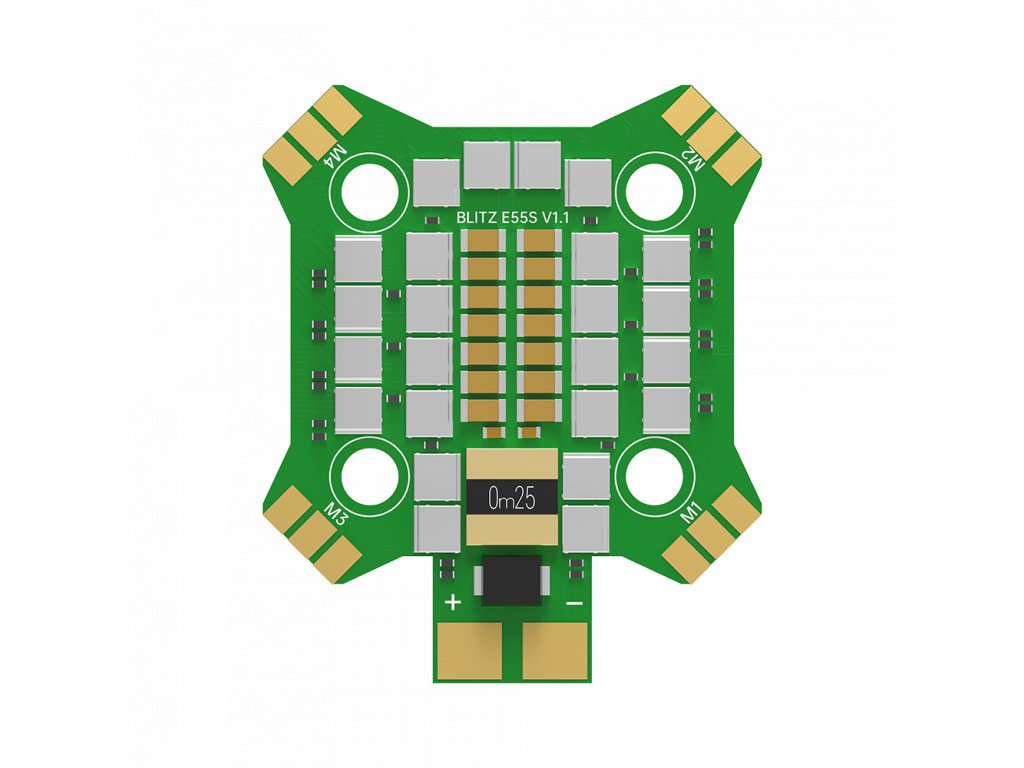

BLITZ Mini E55S BLheli_S

Product detailed description

The next generation ESC from iFlight has arrived. Compatible with BNF FPV drones like the Nazgul F5/F6 series. These new 55A BLHeli_S ( BlueJay support) BLITZ Mini 4in1 ESCs can handle even the most demanding motors. Powerful 55A for 2-6S batteries. 20x20 mounting pattern.

Description:

• 20*20mm/Φ4mm mounting holes.

• Weight: 11.3g

• Supports 2-6S lipo input

• MCU: BB21

• Constant: 55 Amps

• Peak (10s): 65 Amps

• Current Sensor: Yes

• BEC: No

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

• Q-H-25 16.7 (BlheliS) / Bluejay Q-H-50 (Bluejay)

Package includes:

• 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC

• 1 x ESC power cables and signal wires
